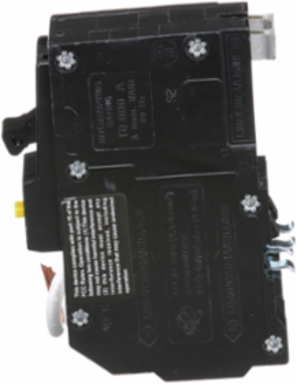

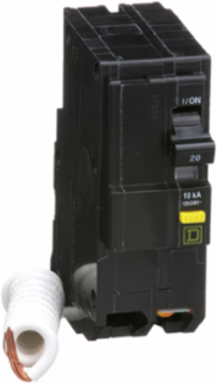

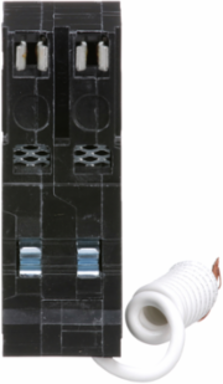

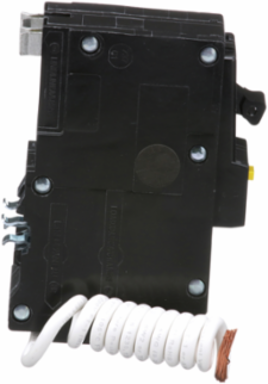

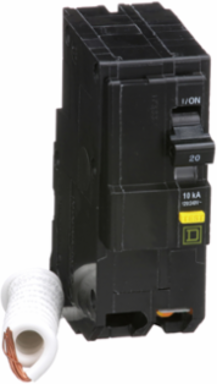

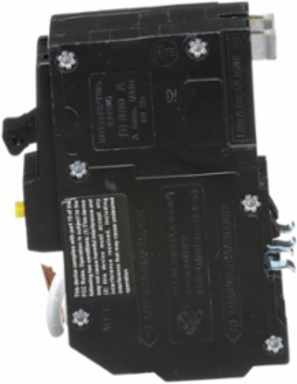

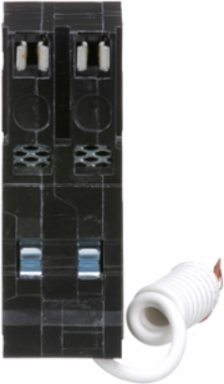

Square D QO220GFI Mini Circuit Breaker 20A 2 Pole 120/240VAC 10kA Ground Fault 6mA
- MPN: QO220GFI
- UPC: 785901562993
- PPN: SCH-QO220GFI
CAD
$256.97
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 20A 2 Pole 120/240VAC 10kA Ground Fault 6mA
Features
- Featuring a 20-amp capacity across a 2-pole, 120/240V AC frame, this circuit breaker is purpose-built to protect larger, dedicated single-phase machinery, commercial pumps, HVAC equipment, and hot tub installations. Delivering both overcurrent and ground fault protection in a single module, it eliminates the need for bulky, expensive external GFCI disconnect enclosures.

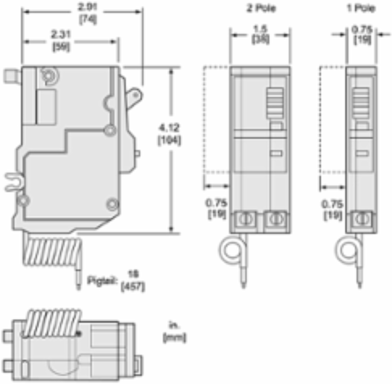

- Utilizing Schneider's industry-standard Square DTM QOTM mechanical footprint, this breaker snaps securely onto the panel's bus bar without the use of mounting screws. It features a compact 1.5-in width that takes up exactly two spaces in QO load centers, NQ panelboards, and generator panels, making it an ideal choice for quick field retrofits and panel upgrades.
- Built with an interrupting rating of 10,000 Amps (10 kA), this heavy-duty breaker safely withstands high-energy short circuits without catastrophic internal failure or casing rupture. This professional-grade ruggedness satisfies rigid North American building codes (UL Listed and CSA Certified), ensuring your facility's power distribution system remains fundamentally stable under extreme fault conditions.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 74 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Line Rated Current | 20 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| Tightening Torque | 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG) |
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.088784856 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 3.3254460262 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Use Carbon Footprint | 37.375 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...8 AWG copper12 AWG...8 AWG aluminium |
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Energy Efficiency Optimized | False |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 41 kg CO2 eq. |
| Pep Code | ENVPEP2212005EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Width Nominal | 38 mm |
| Package Weight(Lbs) | 430.92 g |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 455.05 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 5.7146 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 503.15 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 472.94 |
| Water Pollution (M3) Operational Energy Use [B6] | 1842.6 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1097354793, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0029943945, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 37 kg CO2 eq., 37.375 |
| Local Publishable Date | 2026-04-14 |
| Stocking Flag | Y |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2212005 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | not rated |
| Electrical Connection | pressure plate |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 2 |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 105 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 3173.9 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 37.375 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 472.94 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 30.218 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 30.218 |
| Customs Code | 8536200040 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 40.901960756 |
| Circularity Profile | ENVEOLI2212005 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2212005EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40 °C |
| Environmental Disclosure | ENVPEP2212005EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QO |
|---|
ETIM
| ETIM 8 | EC000905 |
|---|
| ETIM 9 | EC000905 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
