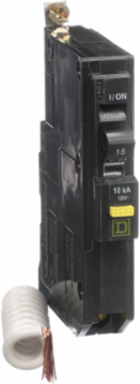

Square D QOB115GFI Mini Circuit Breaker, 15A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA
- MPN: QOB115GFI
- UPC: 785901368700
- PPN: SCH-QOB115GFI
CAD
$434.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB115GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Interrupt Rating
- 10 kA 120 V AC 50/60 Hz
- Number of Poles
- 1P
- Electrical Connection
- Pressure plate
- Tightening Torque
- 4 to 4.6 N.m (35.4 to 40.7 lbf.in)

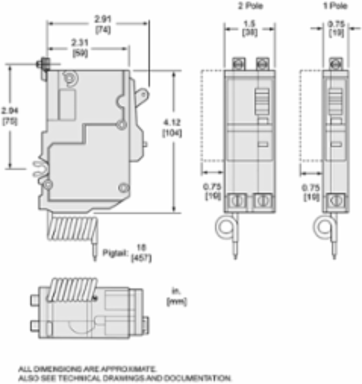

- Width
- 19 mm (0.75 in)
- Net Weight
- 0.240 kg (0.53 lb)
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Environmental Disclosure
- ENVPEP2212005
- RoHS Exemption Information
- Yes
- China RoHS Regulation
- Out of China RoHS scope
- Range Of Product
- QO
- Circularity Profile
- ENVEOLI2212005
Voltage120 V AC
Ground Fault Sensitivity6 mA Class A
Mounting TypeBolt-on
Wire SizeAWG 14 to AWG 8 copper or aluminum
Height105 mm (4.13 in)
Depth74 mm (2.91 in)
Product Or Component Typeminiature circuit-breaker
Circuit Breaker Applicationnot rated
Mercury FreeYes
Euro RoHS DirectiveCompliant with Exemptions
Product CertificationsUL Listed, CSA Certified
Reach RegulationContains SVHC over threshold
Warranty18 months
