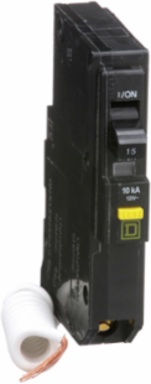

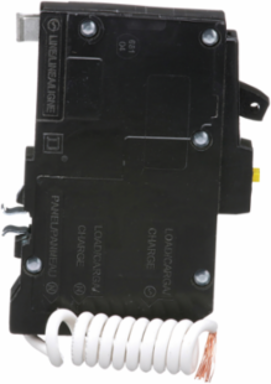

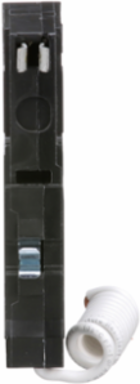

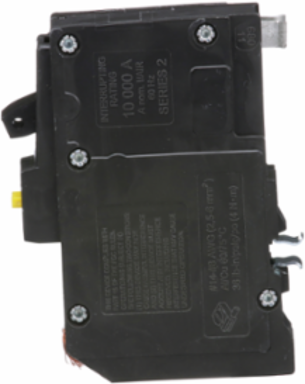

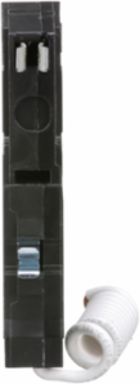

Square D QO115GFI Mini Circuit Breaker 15A 1 Pole 120V AC 10kA Ground Fault
- MPN: QO115GFI
- UPC: 785901255062
- PPN: SCH-QO115GFI
CAD
$156.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 15 A, 12/24 V, and 1 pole. This unit provides 1 kA breaking capacity and plug-on mounting. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips. This unit has a factory installed combination arc fault interrupter with plug-on neutral QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO-colour {}-[In] rated current 15 A-[Ue] rated operational voltage {"1" 2018-04-13 05:12:51}-mounting mode plug-in-poles description 1P-Range Presentation
Features
- The Schneider Square D QO115GFI is a 15-Amp, single-pole Ground Fault Circuit Interrupter (GFCI) designed to protect people, not just equipment. It continuously monitors the current balance between the hot and neutral wires; if it detects a leakage current as low as 6mA, it trips instantly to prevent lethal electrical shocks in wet or damp locations.
- This breaker is part of the premium QO (Quick-Open) line and is only compatible with Square D QO load centers. It features the iconic Visi-Trip™ red indicator, which provides a clear visual signal that the breaker has tripped, significantly reducing troubleshooting time for homeowners and electricians.
- Rated for 120V AC, this 15-Amp GFCI is a mandatory safety component for circuits serving bathrooms, kitchens, outdoor receptacles, and garages. By installing this breaker at the panel, you provide "whole-circuit" protection, ensuring that every outlet on that branch is shielded from ground faults.

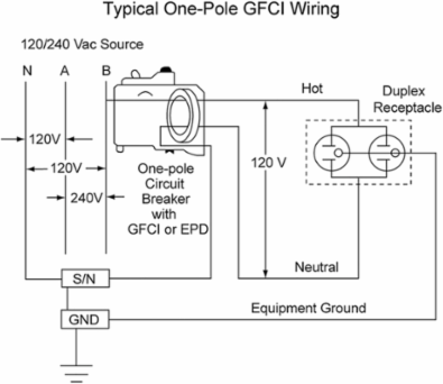

- The QO115GFI uses the industry-standard Square D plug-on mounting system for a fast and secure mechanical connection to the bus bar. This specific model includes a load neutral (pigtail) wire that must be connected to the neutral bar in the panel to enable the GFCI sensing electronics to function correctly.
- Square D's proprietary Quick-Open mechanism is designed to snap the contacts open faster than standard breakers. This rapid response limits the duration of a short circuit or ground fault, reducing the potential for wire damage and improving the overall safety of your home's electrical system.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 V AC
- Breaking Capacity
- 10 kA
- Poles
- 1P
- Electrical Connection
- Pressure plate
- Tightening Torque
- 4 to 4.6 N.m

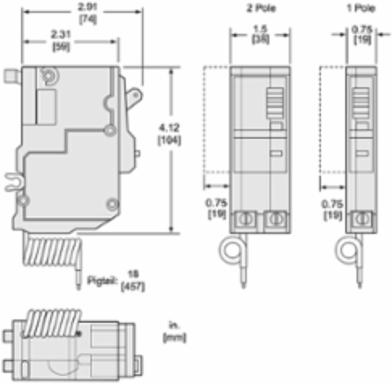

- Width
- 19 mm
- Net Weight
- 0.227 kg
- Product Type
- Miniature circuit-breaker
- Certifications
- UL Listed, CSA Certified
- Country of Origin
- Mexico
Current Rating15 A
Circuit Breaker TypeGround fault protecting class A 6 mA
Mounting TypePlug-in
Wire SizeAWG 14 to AWG 8 copper, AWG 12 to AWG 8 aluminum
Height105 mm
Depth74 mm
Mercury FreeYes
Ambient Air Temperature for Operation40 °C
RoHS ComplianceCompliant with Exemptions
