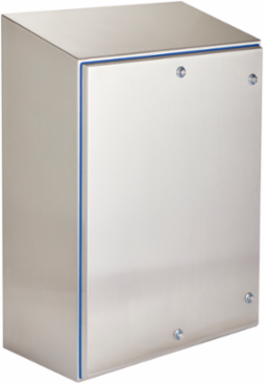

nVent Hoffman HSDH363012SS HyShed Hinge Cover Enclosures Type 4X, 36.00x30.00x12.00, Stainless Steel 304
nVent Hoffman HSDH363012SS HyShed Hinge Cover Enclosures Type 4X, 36.00x30.00x12.00, Stainless Steel 304
- MPN: HSDH363012SS
- UPC: 783510305314
- PPN: HOF-HSDH363012SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
HyShed 4X, IP69 enclosures designed for high pressure, temperature washdown in food and beverage. This HyShed Hinge Cover Enclosures Type 4X, HSDH363012SS item measures 36.00x30.00x12.00 inches with a material of Stainless Steel 304.
Features
- Brushed #4 finish for dairy applications
- 15-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
- Door edges are sloped to facilitate runoff
- Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
- Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systems
- Internally mounted hinges to reduce bacteria-harboring catch points
- Stainless steel crevice-free latch surfaces to reduce bacteria harboring catch points; uses standard tool to open
- Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available
- 105-degree door opening
- Self-grounding latch system with double seal
- Seams continuously welded and ground smooth
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting kit and grounding kit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 762
- Protection Rating
- NEMA Type 12
- Material
- Stainless Steel 304
- Thickness (T)
- 1.98
- Weight
- 112
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)914
Depth (D)305
Product FamilyHyShed
Finish#4 Dairy
Latch Quantity5
IP RatingIP66
