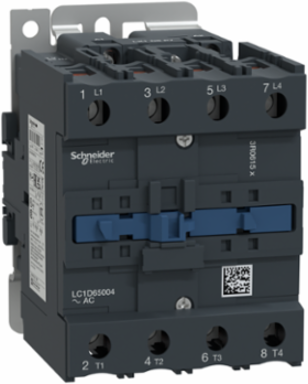

Schneider Electric LC1D65004F7 TeSys Deca Contactor 4P 40A 110V AC 50/60Hz, IP2X, 1.44 kg
- MPN: LC1D65004F7
- PPN: SCH-LC1D65004F7
CAD
$691.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This TeSys Deca contactor from Schneider Electric is engineered for robust automation and control applications, providing reliable performance in demanding environments. With a four-pole configuration and a rating of 40A at 110V AC for both 50 and 60Hz operations, it ensures dependable switching and control of electrical circuits. Designed to meet IP2X standards, this contactor offers enhanced safety and protection against dust and solid objects, making it suitable for a variety of industrial settings. The LC1D65004F7 model stands out for its solid construction, ensuring long-lasting operation and efficiency in your control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth130 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz standard, AC 50/60 Hz standard
- Maximum Horse Power Rating
- 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL20 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA20 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL5 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL50 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL50 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL, 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA, 10 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 20 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA5 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA50 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA, 50 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA
- Maximum Operating Rate
- 3600 cyc/h at 60 °C
- Minimum Switching Voltage
- 17 V for control circuit
Control Circuit Voltage Limits0.3...0.6 Uc (60-60 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (60-60 °C):operational AC 50 Hz0.85...1.1 Uc (60-60 °C):operational AC 60 Hz
Irms Rated Making Capacity1000 A at 440 V for power circuit conforming to IEC 60947140 A AC for control circuit conforming to IEC 60947-5-1
Minimum Switching Current5 mA for control circuit
Rated Breaking Capacity1000 A at 440 V for power circuit conforming to IEC 60947
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Inrush Power In Va
- 140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- shocks contactor open 8 Gn for 11 ms)shocks contactor closed 10 Gn for 11 ms), vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 3 Gn, 5...300 Hz)
- Tightening Torque
- control circuit 1.2 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw clamp terminal flat Ø 6 mm, power circuit 5 N.m screw clamp terminal flat Ø 8 mm, control circuit 1.2 N.m screw clamp terminal pozidriv No 2
- Control Circuit Voltage
- 110 V
- [Uc] Control Circuit Voltage
- 110 V, 110 V AC 50/60 Hz
- Connections - Terminals
- control circuit: 2 1-4 mm² - cable stiffness: solid without cable endpower circuit: 2 1-25 mm² - cable stiffness: solid without cable endpower circuit: 2 1-35 mm² - cable stiffness: solid without cable endscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable endcontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1760063361869087, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.3 kg CO2 eq., 0.2523595925959343
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 57 kg CO2 eq., 56.91943840579708
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 10 A gG for control circuit conforming to IEC 60947-5-1125 A gG at <= 690 V coordination type 2 for power circuit160 A gG at <= 690 V coordination type 1 for power circuit
- Coil Technology
- without built-in bidirectional peak limiting diode suppressor
- Contactor Application
- resistive load
- Fire Resistance
- 850 °C IEC 60695-2-1
- Heat Dissipation
- 4-5 W at 50/60 Hz for control circuit
- Number Of Poles
- 4P
- Overvoltage Category
- III
- Power Dissipation Per Pole
- 6.4 W AC-1
- Product Or Component Type
- contactor
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rated Thermal Current Hv
- 80 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 851.91
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 127 mm
- [Ie] Rated Operational Current
- 80 A (at <60 °C) AC AC-1 for power circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Hold-in Power Consumption In Va
- 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Insulation Resistance> 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
Mounting Supportrail, plate
Utilisation CategoryAC-1, AC-3, AC-3e, AC-4
Certificate AgencyCCC, BV, DNV, UL, GL, CSA, LROS (Lloyds register of shipping), RINA, GOST, UKCA
[Ui] Rated Insulation Voltagepower circuit 600 V ULpower circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSAcontrol circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.328416174215296, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.921945858891672
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Impedance1 mOhm - Ith 80 A 50 Hz for power circuit
Compatibility CodeLC1D
Device Short NameLC1D
Flame RetardanceV1 conforming to UL 94
Mechanical Durability6 Mcycles
Operating Time12...26 ms closing4...19 ms opening
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH 3)IEC 60068
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint70 kg CO2 eq.
Connections Terminalsscrew clamp terminals
Pep CodeENVPEP1102005EN
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %76
Width Nominal85 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for control circuit80 A (at 60 °C) for power circuit
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947
Rated Thermal Current (Ith)80 A
Package Weight(Lbs)1.472 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Permissible Ambient Air Temperature Around The Device
- -5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc-5-60 °C, -40-70 °C at Uc, -40-70 °C at Uc
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 69.59816636768689
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP2X IEC 60529, IP2X VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1102005EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Accessories
