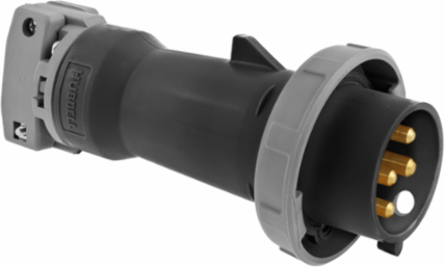

Hubbell Wiring Device-Kellems HBL460P5W Heavy Duty Watertight Plug, 60A 3-Phase 600V AC, 3-Pole 4-Wire
Hubbell Wiring Device-Kellems HBL460P5W Heavy Duty Watertight Plug, 60A 3-Phase 600V AC, 3-Pole 4-Wire
- MPN: HBL460P5W
- UPC: 783585404851
- PPN: HBL-HBL460P5W
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$838.31/ EA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
- Watertight
Specifications
Specifications
- Country of Origin
- US
- Width
- 5.500 in
- Industry Standard(s)
- CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
- Amperage Rating
- 60 A
- Color
- Noir
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Standard
- CSA Standard C22.2 No. 182.1;UL Classified to IEC60309-1;UL Listed, File E146032
- Voltage Rating
- 3 Phase 600 VAC
- Voltage Rating Description
- 3 Phase 600 VAC
- Display Size
- Standard Sized
- Number Of Poles
- 3-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, PLUG, 3P4W, 60A 3P 600V, W/T
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 60 A
- Series
- HBL Heavy Duty
- BOX SIZE
- 10.200x24.900x12.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585404851
- Case Weight
- 18.513 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 40.800 in
- Pallet Weight
- 572.400 lb.
Current / Amperage Rating60 A
Each - Width5.500 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - HB or Better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperature - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
ApplicationHigh Ampacity Connections
Cord TypeAll Portable
NEMA RatingNon-NEMA
Number of Wires4-Wire
Special FeaturesWatertight
TypeWatertight Plug
Wire Size#8 AWG to #2 AWG
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBLS460P5W
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack23.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585404850
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
