Square D 9001SK1L35RH13 Harmony Illuminated Push-Button 30mm Red Spring Return 24-28V
- MPN: 9001SK1L35RH13
- UPC: 785901040460
- PPN: SCH-9001SK1L35RH13
CAD
$231.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

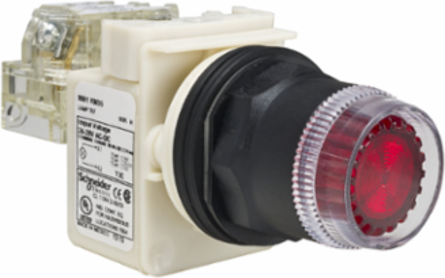

This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- plastic guard
- Operator Profile
- red flush
- Type Of Operator
- spring return
- Device Short Name
- 9001SK
Range Of ProductHarmony 9001SK
Light Block Supplydirect
Product Or Component Typeilluminated push-button
Complementary
- [Us] Rated Supply Voltage
- 24...28 V
- [Icm] Rated Short-Circuit Making Capacity
- 0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
- Light Source
- LED
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- [Ie] Rated Operational Current
- 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Contact Operation
- standard
- Mechanical Durability
- 5000000 cycles
- Light Block Supply
- full voltage
- Type Of Operator
- spring return
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Cap/Operator Or Lens Colour
- red
- Shape Of Screw Head
- cross slotted
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Device Presentation
- complete product
[Us] Rated Supply Voltage24...28 V AC/DC
Contacts Type And Composition1 C/O
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Bezel Materialplastic
Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
Contacts Materialsilver alloy contacts
Mounting Diameter30 mm
Operator Profileflush
Operating Positionany position
Rated Breaking Capacity1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Net Weight0.181 kg
Bulb BaseBA 9s
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121005EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C 852 || EN/IEC 60947-5-1 || JIS C 4520 || EN/IEC 60947-1
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
