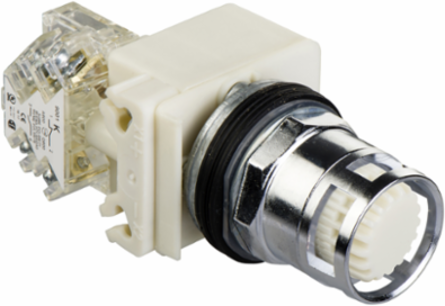

Schneider Electric 9001K3L35WH5 Harmony 9001K 30mm Illuminated Push Button, Spring Return, 24-28V

MPN: 9001K3L35WH5
UPC: 785901398639
PPN: SCH-9001K3L35WH5

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$205.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, modular illuminated flush white push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Features

Precision-engineered for a standard 30mm mounting hole, this rugged Schneider Electric Harmony 9001K series pilot light is built to withstand the harshest industrial environments. The heavy-duty chrome-plated metal bezel provides superior impact resistance and a secure fit, ensuring your control station remains operational in high-vibration manufacturing settings or outdoor processing plants.
Featuring a high-visibility white LED powered by a 24-28V AC/DC full-voltage module, this indicator provides a crisp, daylight-readable signal that pierces through shop-floor dust and bright overhead lighting. Unlike traditional incandescent bulbs, this solid-state LED consumes minimal power and generates virtually no heat, significantly extending the service life of the unit and reducing routine maintenance costs.
Supplied with a single Normally Open contact, this unit does more than just provide visual feedback; it can actively send a signal to your controller or secondary relay when depressed. This dual-purpose design simplifies your wiring and saves space on the DIN rail by combining status indication and manual input into a single 30mm cutout, streamlining your control cabinet architecture.
Fully rated for NEMA 4 (watertight) and NEMA 13 (oiltight) standards, this Schneider Electric component is specifically designed for environments where oil, coolants, and water spray are present. Its UL Listing and CSA Certification ensure that your custom control panels meet all North American electrical safety codes, providing peace of mind during rigorous third-party inspections and long-term operational audits.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Size	30 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Light Block Supply	direct, full voltage
Certificate Agency	NEMA, CE, UL listed file E42259 CCN NKCR, CSA LR 25490 class 3211 03
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	BA 9s
Contacts Type And Composition	1 NO
Mounting Diameter	30 mm
Operator Additional Information	metal guard
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony 9001K
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage	24...28 V24...28 V AC/DC
Connections - Terminals	screw clamp terminals
Package Weight(Lbs)	226.796 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Light Source	bulb, incandescent
[Ie] Rated Operational Current	10 A, AC-15, 10 A, DC-13
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Contact Operation	standard
Device Short Name	K
Operating Position	any position
Operator Profile	flushwhite flush
Product Or Component Type	illuminated push-button
Returnability	No
Type Of Operator	spring return
Pep Code	ENVPEP2503027EN
Cap/Operator Or Lens Colour	white
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509035

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Nema Degree Of Protection	NEMA 3R/6/13
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
