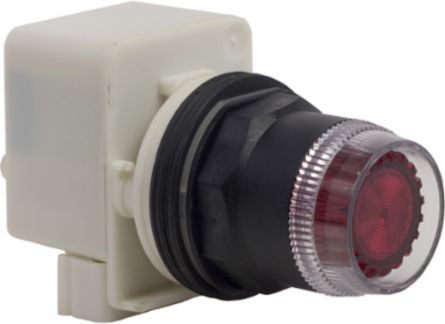

Square D 9001SK1L1R Harmony 9001SK Red Illuminated Push Button 30mm Spring Return 110-120V
Square D 9001SK1L1R Harmony 9001SK Red Illuminated Push Button 30mm Spring Return 110-120V
- MPN: 9001SK1L1R
- UPC: 785901820949
- PPN: SCH-9001SK1L1R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$216.29/ EA
Description
This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Specifications
Complementary
- Product Certifications
- UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
- Contacts Type And Composition
- without contact block
- Bezel Material
- plastic
- Light Source
- incandescent bulb
- Mounting Diameter
- 30 mm
- Operator Profile
- flush
- Shape Of Signaling Unit Head
- octagonal
- Size
- 30 mm
- Ip Degree Of Protection
- IP64
[Us] Rated Supply Voltage110...120 V
Operator Additional Informationplastic guard
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Light Block Supplyvia transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz
Light Block Supplyvia integral transformer
Type Of Operatorspring return
Cap/Operator Or Lens Colourred
Supply Frequency50...60 Hz
Bulb BaseBA 9s
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121005EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typehead for illuminated push-button
