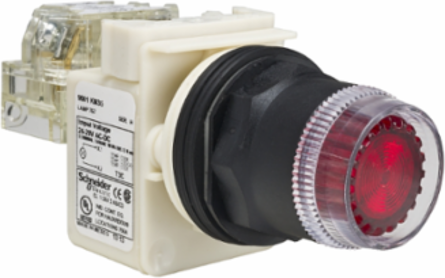

Schneider Electric 9001SK2L38LRRH13 Illuminated Push-Button, 30mm, Red, Spring Return, LED Red, IP66

MPN: 9001SK2L38LRRH13
UPC: 785901696803
PPN: SCH-9001SK2L38LRRH13

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$252.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001SK, modular illuminated flush red push button is supplied with contact block. It has a double insulated plastic bezel, is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Physical Attributes

Light Source Color	red

Complementary Attributes

Rated Breaking Capacity	1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA0.1 kA 240 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	1, no
[Icm] Rated Short-circuit Making Capacity	30 kA 240 V AC-15, 7200 VA0.1 kA 240 V DC-13, 7200 VA, 12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 125 V DC-13, 7200 VA60 kA 120 V AC-15, 7200 VA, 60 kA 250 V DC-13, 7200 VA
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	plastic
Contact Operation	standard
Contacts Type And Composition	1 C/O
Electrical Shock Protection Class	class II conforming to IEC 61140
Light Source	LED
Mounting Diameter	30 mm
Operator Additional Information	without guard
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	No
Shock Resistance	50 gn IEC 60068-2-27
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Light Source Color	red
[Ie] Rated Operational Current	0.55 A 125 V, DC-13, A600-Q600 NEMA
[Ui] Rated Insulation Voltage	250 V 3)IEC 60947-1
[Us] Rated Supply Voltage	120 V120 V AC/DC
Connections - Terminals	screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509035

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL 508, NEMA
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Bulb Base	BA 9s
Contacts Material	silver alloy contacts
Device Short Name	9001SK
Light Block Supply	direct
Mechanical Durability	5000000 cycles
Operating Position	any position
Operator Profile	projectingred projecting
Product Or Component Type	illuminated push-button
Range Of Product	Harmony 9001SK
Shape Of Screw Head	cross slotted
Sustainable Packaging	Yes
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2503027EN
[Ith] Conventional Free Air Thermal Current	10 A
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
Cap/Operator Or Lens Colour	red
Short-circuit Protection	10 A cartridge fuse IEC 60947-5-1
Package Weight(Lbs)	226.796 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
