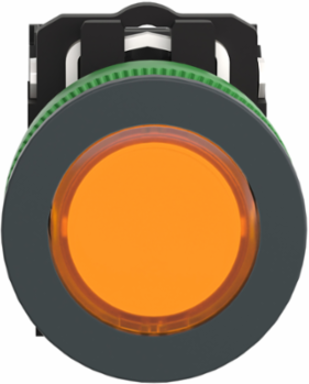

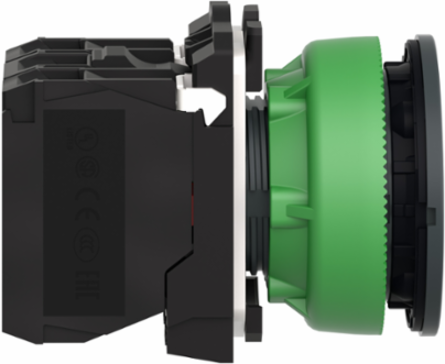

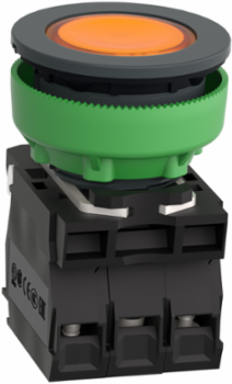

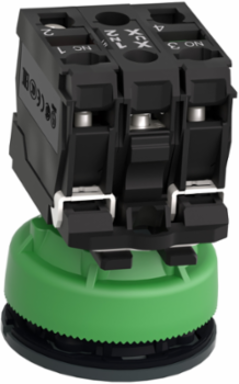

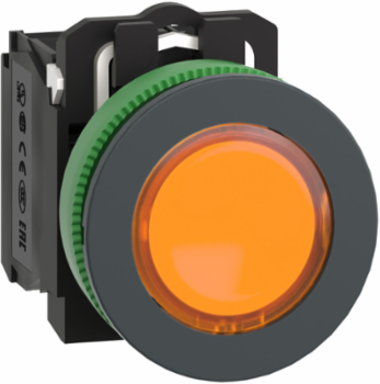

Schneider Electric XB5FW35B5 Illuminated push button, Harmony XB5, orange, 30mm, universal LED, 1NO + 1NC, 24V AC DC
- MPN: XB5FW35B5
- PPN: SCH-XB5FW35B5
CAD
$126.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Illuminated push button, Harmony XB5, orange, 30mm, universal LED, 1NO + 1NC, 24V AC DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Depth55 mm
Physical Attributes
- Cap Operator Or Lens Color
- orange, orange
Complementary Attributes
- Ie Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Ui Rated Insulation Voltage
- 600 V 3)IEC 60947-1
Us Rated Supply Voltage24 V, 24 V AC/DC 50/60 Hz
Uimp Rated Impulse Withstand Voltage6 kV IEC 60947-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Contacts Material
- silver alloy (Ag/Ni)
- Customizable
- 1, no
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Mounting Diameter
- 30.5 mm
- Operating Travel
- 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Product Or Component Type
- illuminated push-button
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
- Shape Of Signaling Unit Head
- round
- Signalling Type
- steady
- Terminals Description Iso N 1

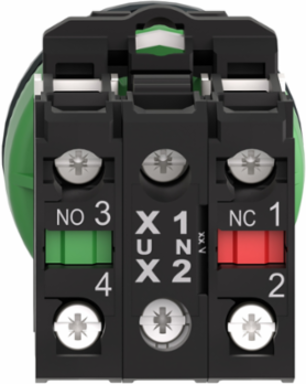

- (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
- Type Of Operator
- spring return
- Connections Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0078459649, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0004458947, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.3 kg CO2 eq., 0.2772013187
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 13 %
- Bulb Base
- integral LED
- Contacts Type And Composition
- 1 NO + 1 NC
- Device Short Name
- XB5F
- Fixing Collar Material
- plastic
- Head Type
- built-in-flush
- Mechanical Durability
- 10000000 cycles
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony XB5
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.7 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ith Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Supply Voltage Num 22 Supply Voltage Num
- 24 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Espagnac (France)
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
- Height Nominal
- 42 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contact Operationslow-break
Contacts Usagestandard contacts
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourceuniversal LED
Operating Force3.5 N NC changing electrical state, 3.8 N
Operator Profileorange flush, unmarked
Protective TreatmentTH
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Supply Voltage Limits19.2-30 V DC, 21.6-26.4 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Cap Operator Or Lens Colororange, orange
Ie Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0525324561
Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.3600701754
Certificate AgencyUL Listed, CSA
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content22 %
Compatibility CodeXB5
Current Consumption18 mA
Electromagnetic Emissionclass B IEC 55011
Gcr BridgeXB5FWCUST01
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Operator Additional Informationwith plain lens
Positive Openingwith IEC 60947-5-1 appendix K
Product Repair IndexA
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingYes
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty In Months18
Pep CodeENVPEP1710010_V2
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Width Nominal36.6 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.6980958099
- Environmental Disclosure
- ENVPEP1710010_V2
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level13 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1710010_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Overview Attributes
- Device Presentation
- complete product
