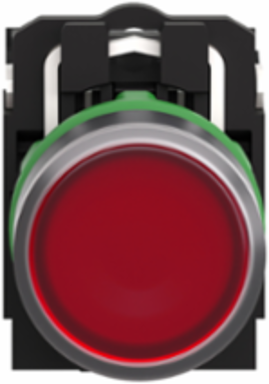

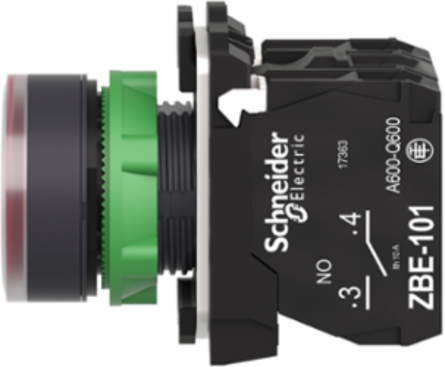

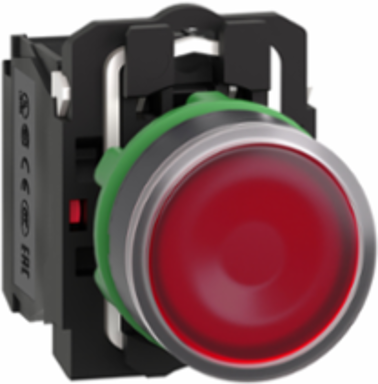

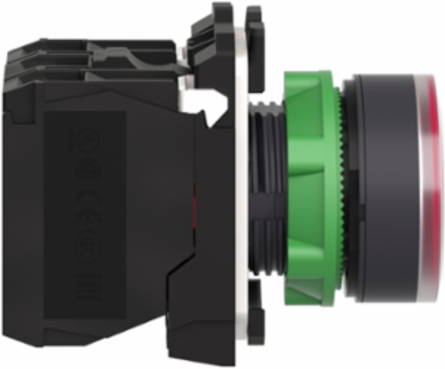

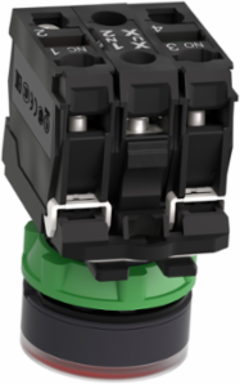

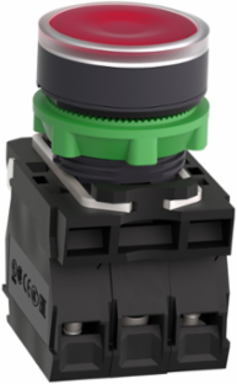

Schneider Electric XB5AW34B5 Illuminated Push Button 22mm Red, Universal LED, 1NO + 1NC, 24V AC/DC
- MPN: XB5AW34B5
- PPN: SCH-XB5AW34B5
CAD
$106.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses a universal LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Features
- This complete, pre-assembled illuminated push button features a standard 22.5 mm mounting diameter, making it a drop-in replacement for any classic industrial control panel setup. The standardized Harmony XB5 design eliminates the need for panel modifications or custom drilling, allowing industrial electricians to streamline maintenance turnarounds and significantly minimize system downtime.
- Equipped with 1 NO (Normally Open) and 1 NC (Normally Closed) slow-break silver alloy contacts, this unit provides versatile simultaneous signaling for electrical control circuits. The slow-break mechanism guarantees stable electrical performance up to 600V, providing reliable emergency signaling or state switching for heavy-duty motor starters and automation relays.
- Designed with an energy-efficient, integral universal LED rated for a 24V AC/DC supply voltage (50/60 Hz) this vibrant red flush lens delivers steady, clear visual status updates even from across a busy shop floor. With an exceptional service life of up to 100,000 hours at rated voltage, it dramatically reduces field replacements and avoids false indicator headaches caused by premature bulb burnouts.
- Featuring a rugged dark grey plastic bezel and fixing collar, this assembly delivers superb double electrical insulation and excellent resistance to harsh chemical agents. Engineered to withstand demanding sanitation protocols, it handles high-pressure washer forces up to 7,000,000 Pa at 55 C.
- Backed by IP66, IP67, IP69, and IP69K ratings, this push button completely blocks dust, water submersion, and high-velocity steam jets. It operates flawlessly across extreme ambient temperatures ranging from -40 C to 70 C, addressing your strict safety and environmental compliance requirements in punishing outdoor industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States

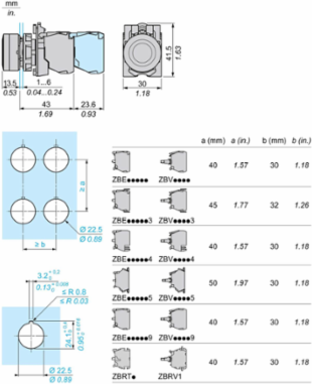

Depth57 mm
Physical Attributes
- Cap Operator Or Lens Color
- red
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Force
- 3.5 N NC changing electrical state, 3.8 N
- Certificate Agency
- CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
- [Us] Rated Supply Voltage
- AC/DC 50/60 Hz, 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01614217468805704, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.015522281639928697
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.4 kg CO2 eq., 0.4183380281690141
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2404014EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 22 %
- Compatibility Code
- XB5
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Head Type
- standard
- Light Source
- universal LED
- Mounting Diameter
- 22.5 mm
- Operator Additional Information
- with plain lens
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB5
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Signalling Type
- steady
- Supply Voltage Limits
- 19.2-30 V DC21.6-26.4 V AC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Composition
- 1 NO + 1 NC
- Pep Code
- ENVPEP2404014EN
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 42 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizableno, 1
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

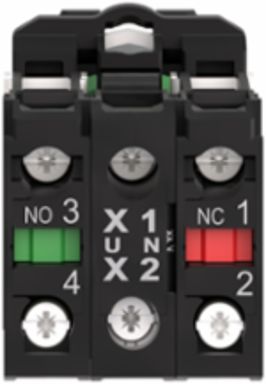

Terminals Description Iso N°1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1294488413547237, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.39035294117647057
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content13 %
Bulb Baseintegral LED
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Current Consumption18 mA
Electromagnetic Emissionclass B IEC 55011
Gcr BridgeXB5AWCUST05
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability10000000 cycles
Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Operator Profilered flush, unmarked
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typeilluminated push-button
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Cap Operator Or Lens Colorred
Supply Voltage Num 22 Supply Voltage Num24 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %38
Width Nominal30 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourred
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)55.000 g
Take-backNo
Customs Code8536509033
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP69, IP69K, IP67
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.9698042670281941
- Environmental Disclosure
- ENVPEP2404014EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level13 %
Mercury FreeYes
Circularity ProfileENVEOLI2404014EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2404014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
