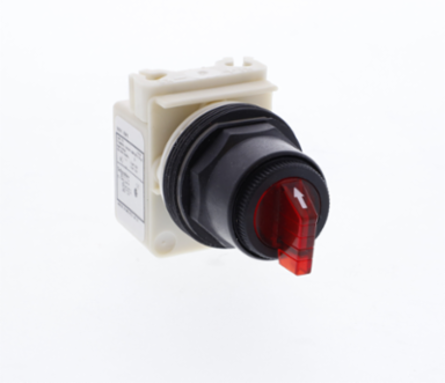

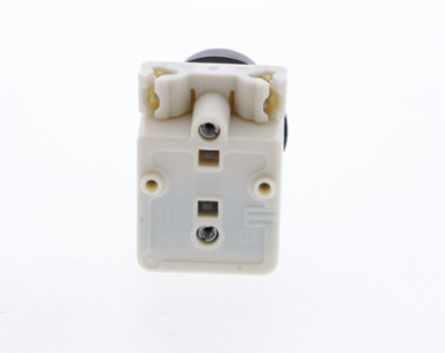

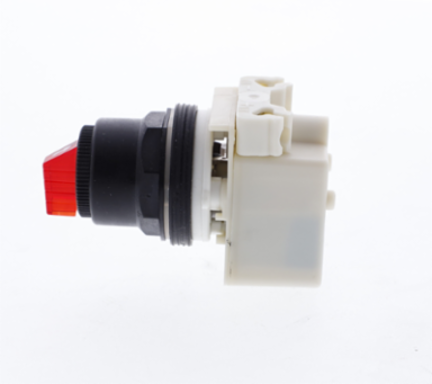

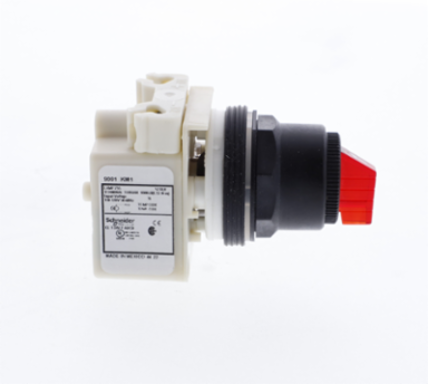

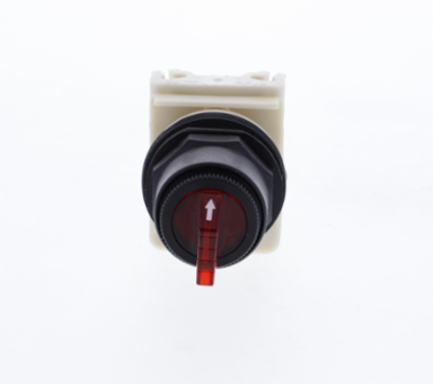

Square D 9001SK53J1R Illuminated Selector Switch Head, 30 mm, Red, 3 Positions, NEMA 1-4X, 110-120V
- MPN: 9001SK53J1R
- UPC: 785901178460
- PPN: SCH-9001SK53J1R
CAD
$252.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for user-friendly control in various industrial applications, this illuminated selector switch head from Schneider Electric offers a robust solution for switching functions with precision and clarity. Featuring a striking red design, it is not only visually recognizable but also supports three distinct positions, enhancing operational versatility. With a construction rated for NEMA 1-4X environments, it ensures reliable performance across different conditions, while the 110-120V rating aligns with standard electrical systems. This selector switch is an essential component for any automation and control setup, providing both functionality and ease of use.
Documentation & Downloads
Specifications
Additional
- Supply Voltage
- 110-120 V AC 50/60 Hz
- Mechanical Durability
- 500000 cycles
- Vibration Resistance
- 7 gn 2-500 Hz IEC 60068-2-6
- Positions
- 3 positions
- Size
- 30 mm
- Material
- plastic
- Bulb Base
- BA 9s
- Light Block Supply
- via integral transformer
- NEMA Degree of Protection
- NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, 13
- Standards
- EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C 4520, JIS C 852, CSA C22.2 No 14, UL 508
- Ambient Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Device Short Name
- 9001SK
- Cap/Operator or Lens Colour
- red
- RoHS Exemption Information
- Yes
- Reach Free of SVHC
- Yes
- WEEE
- Must be disposed per EU waste collection
- Bezel Material
- plastic
- Net Weight
- 0.059 kg
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Compatibility Code
- 9001SK
- Cam Profile
- 2
Supply Frequency50...60 Hz
Shock Resistance50 gn IEC 60068-2-27
Operator Typeto centre spring return
Mounting Diameter30 mm (1.18 in)
Operator Profilered standard knob
Protective TreatmentTC
Light Sourceincandescent bulb
Electrical Shock Protection ClassClass II IEC 61140
IP Degree of ProtectionIP66 IEC 60529
Ambient Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Country of OriginMexico
Product Typehead for illuminated selector switch
Mercury FreeYes
EU RoHS DirectivePro-active compliance (product out of EU RoHS legal scope)
Reach RegulationFree of SVHC above threshold
Circularity ProfileN/A
Contacts Type and Compositionwithout contact block
Range of ProductHarmony 9001SK
China RoHS RegulationCompliant
Operator Position Information3 positions
Type Of Operatorto centre spring return
Shape of Signaling Unit Headround
