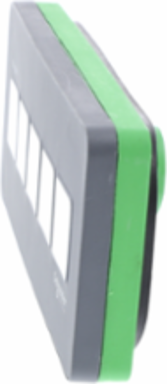

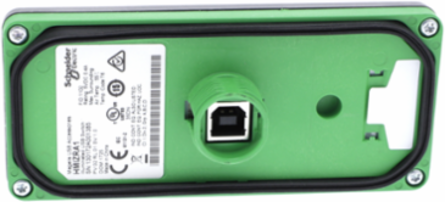

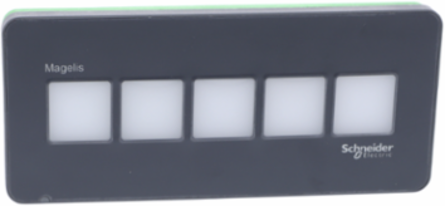

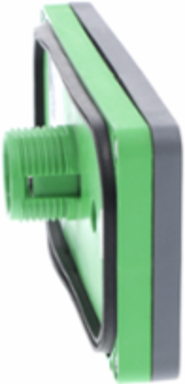

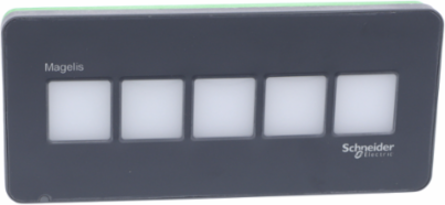

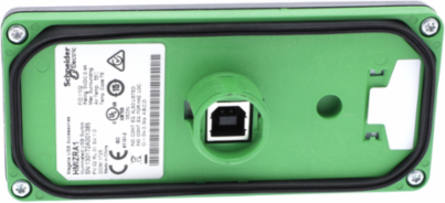

Schneider Electric HMIZRA1 Illuminated USB Switch with 5 Push-Buttons, IP65 Protection
- MPN: HMIZRA1
- PPN: SCH-HMIZRA1
CAD
$286.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This illuminated USB switch accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZRA1 with click sensation is used as function keys with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 5 switches with backlit LED. With Vijeo Desigher, the switches can be set to alarm display and acknowledgement mode or illuminated function keys mode. It is designed with wide view angle and brightness for easy visualization and quick acknowledgement of alarm. It offers water-resistance and can operate in harsh environments. The users can select and adjust the colors of the switch. It weighs 0.110Kg. It iis ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper. It is compatible with Harmony Panel PC and Box PC, XBTGT, XBTGC, HMIGTO, HMIGXO, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Japan
Depth28 mm
Physical Attributes
- Color Of Cover
- front dark grey
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- food and beverage, industrial machines
- Provided Equipment

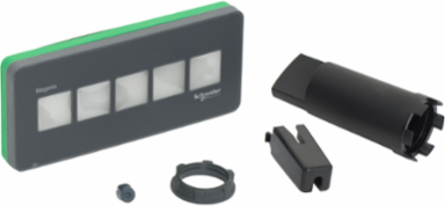

- 1 x User Manual, 1 x USB type B cable clamp, 1 x fixing nut, 1 x tightening wrench, 1 x anti-rotation tee, 1 x gasket, 1 x insert label, 1 x USB cable type A/B 1 m
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 4
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Product Kit Identifier
- N
- Control Type
- 5 push-buttons multi-colour backlit LED
- Level Or Class
- Class I Division 2 Groups A/B/C/D
- Power Consumption In W
- 2 W
- Product Or Component Type
- illuminated USB switch
- Range Of Product
- Harmony HMIZ
- Shock Resistance
- 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2
- Supply Voltage Limits
- 4.75-5.25 V DC
- Vibration Resistance
- 3.5 mm (f= 5-9 Hz) conforming to IEC 61131-2
- Color Of Cover
- front dark grey
- Width Nominal
- 122 mm
- F-gas Free
- Only air and vacuum used for insulation / breaking, no F-gas including SF6
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 307.000 g
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
Certificate AgencyGOST, UL/cUL listed, C-tick, CE
Local Publishable Date2026-01-12
Stocking FlagY
ServiceabilityNo
Weee ApplicabilityComponent
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2514
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Connector TypeUSB type B
Environmental Characteristiccorrosive gas free
Mounting Locationflat surface
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Set1 piece
ReturnabilityNo
Software DesignationVijeo Designer >= V6.1 SP2
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal54 mm
[Us] Rated Supply Voltage5 V DC USB 2.0
F-gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -20-60 °C, -20-60 °C
- Product Compatibility
- XBTGC - controller panel, XBTGT2... - advanced touch panel, HMISTO - touch panel, HMISCU - touch panel, XBTGT6... - advanced touch panel, HMIGTW - advanced touch panel, XBTGK - graphic display, XBTGT4... - advanced touch panel, XBTGT5... - advanced touch panel, XBTGT7... - advanced touch panel, HMISTU - touch panel, HMIGTO - advanced touch panel, HMIPSP - S-Panel PC, HMIPSO - S-Panel PC, HMIBMU - Modular Box PC, HMIBMP - Modular Box PC, HMIBMO - Modular Box PC, HMIBMI - Modular Box PC
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Silicon Free
- No
- Halogen Content Performance
- Product contains halogen above thresholds
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 10-90 % 0-55 °C non-condensing
Nema Degree Of ProtectionNEMA 4X indoor installation, NEMA 13 enclosed outdoor
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP65 front panel (in enclosure))
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Provided Equipment
- 1 x User Manual, 1 x USB type B cable clamp, 1 x fixing nut, 1 x tightening wrench, 1 x anti-rotation tee, 1 x gasket, 1 x insert label, 1 x USB cable type A/B 1 m
- Range Of Product
- Harmony HMIZ
Product Or Component Typeilluminated USB switch
