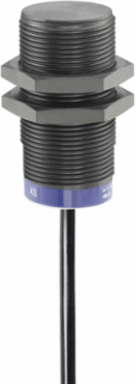

Telemecanique Sensors XS4P18AB120 Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 12...24 VDC, cable 2 m
Telemecanique Sensors XS4P18AB120 Inductive proximity sensors XS, inductive sensor XS4 M18, L41mm, PBT, Sn8mm, 12...24 VDC, cable 2 m
- MPN: XS4P18AB120
- PPN: TES-XS4P18AB120
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$356.10/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical sensor, diameter 18mm, non flush mountable in metal. It features a plastic case and a 2m long PvR cable. It has a sensing distance of 8mm. Two-wire, DC supply, 12V to 24V with an analogue output signal 4mA to 20mA.
Specifications
Environment
- Product Certifications
- CSA || UL
Ambient Air Temperature For Operation-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
Complementary
- Current Consumption
- 4 mA no-load
- Linearity Error
- +/- 2 mA
- Operating Zone
- 0.8-8 mm
- Marking
- CE
- Length
- 41 mm
- Switching Frequency
- <= 500 Hz
- Supply Voltage Limits
- 10-38 V DC
- Detection Face
- frontal
- Cable Composition
- 3 x 0.34 mm²
Height18 mm
Repeat Accuracy<= 3% of Sr
Threaded Length26 mm
Maximum Output Current Drift10 %
Net Weight0.08 kg
Thread TypeM18 x 1
Wire Insulation MaterialPVC
Enclosure MaterialPBT
Front MaterialPPS
Specifications
- Electrical Connection
- cable
- Type Of Output Signal
- analogue
- Cable Length
- 2 m
- Sensor Name
- XS4
- Size
- 41 mm
- Ip Degree Of Protection
- IP67 IEC 60529
- Body Type
- fixed
- Sensor Type
- inductive proximity sensor
- Sensor Design
- cylindrical M18
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC
Range Of ProductTelemecanique Inductive proximity sensors XS
Analogue Output Range4...20 mA
Materialplastic
Wiring Technique2-wire
Series NameApplication
[Sn] Nominal Sensing Distance8 mm
Detector Flush Mounting Acceptancenon flush mountable
Electrical Circuit Typeanalog output
