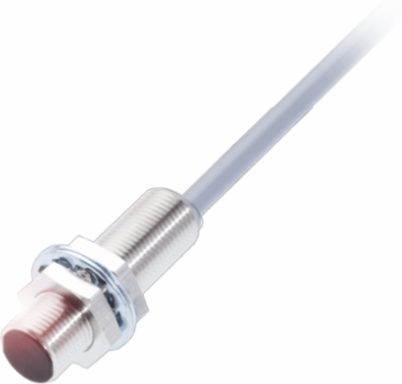

Balluff BES M12MG-GOC30B-BV03 Inductive 2-Wire Sensor 12mm x 43mm, 10-36 VDC, IP67
- MPN: BES M12MG-GOC30B-BV03
- PPN: BAL-BES0474
CAD
$48.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive 2-Wire Sensor 12mm x 43mm, 10-36 VDC, IP67
Documentation & Downloads
Specifications
Additional
- Voltage
- 10-36 VDC
- Current Type
- Polarized Normally closed (NC)
- Operating Distance
- 3 mm
- Hysteresis Max
- 20 %
- Temperature Drift Max
- 10 %
- Dimension
- 12 x 43 mm
- Installation
- Flush mounting
- Housing Material
- Brass
- Surface Protection
- Nickel-free coated
Switching Frequency1300 Hz
Switching OutputPolarized Normally closed (NC)
Assured Operating Distance2.4 mm
Repeat Accuracy Max5 %
Operating Temperature Range-25-70 C
StyleM12x1
ConnectionCable, 3 m, PVC
Material Sensing SurfacePA 12
ApprovalsCE, cULus, EAC, WEEE
