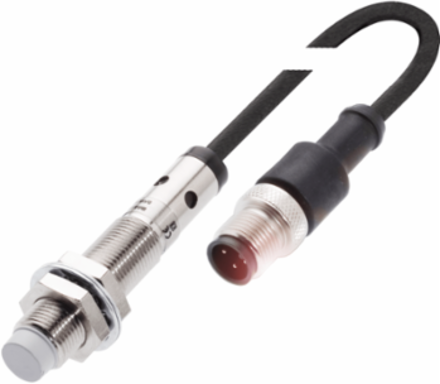

Balluff BAW M12MF2-UAC40F-BP01,5-GS04 Inductive distance sensors BAW M12MF2-UAC40F-BP01,5-GS04
- MPN: BAW M12MF2-UAC40F-BP01,5-GS04
- PPN: BAL-BAW0016
CAD
$474.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive distance sensors BAW M12MF2-UAC40F-BP01,5-GS04
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 65 mm
- Installation
- non-flush
- Analog output
- Analog, voltage 0-10 V
- Repeat accuracy
- ±10 µm
- Housing material
- Brass
- Material sensing surface
- PBT
- Operating voltage Ub
- 15-30 VDC
- IP rating
- IP67
StyleM12x1
Range1-4 mm
Output characteristicfalling on approach
Non-linearity max.±90 µm
Surface protectionnickel plated
ConnectionCable with connector, M12x1-Male, 3-pin, 1.50 m, PUR
Ambient temperature-10-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
