Inductive Distance Sensor, 80 x 80 x 40 mm, IP67, 0-50 mm Range
Balluff

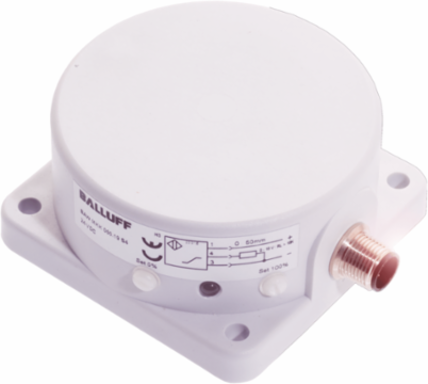

Balluff BAW MKK-050.19-S4 Inductive Distance Sensor, 80 x 80 x 40 mm, IP67, 0-50 mm Range

  • MPN: BAW MKK-050.19-S4
  • PPN: BAL-BAW003K

CAD

$1011.82

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience precision sensing with the Balluff inductive distance sensor, designed for reliable performance in demanding environments. With a sensing range of 0-50 mm and an IP67 rating, this block-style sensor is engineered to withstand harsh conditions while delivering accurate measurements with a repeat accuracy of ±12 µm. The robust PBT housing ensures durability, while the analog output provides a voltage signal of 0-10 V, making it ideal for various industrial applications. Whether used in automation or machinery, this sensor operates efficiently within an ambient temperature range of -10 to 70 °C, ensuring consistent performance in diverse settings.

Documentation & Downloads

Specifications

Additional

Range
0-50 mm
Non-linearity max.
b11500 b5m
Analog output
Analog, voltage 0-10 V
Load resistance
10000 Ohm
Dimension
80 x 80 x 40 mm
Style
block style
Installation
non-flush
Material sensing surface
PBT
Ambient temperature
-10-70 b0C
Short-circuit protection
Yes
Contamination scale
3
Repeat accuracyb112 b5m
Operating voltage20-30 VDC
Limit frequency15 Hz
No-load current12 mA
ConnectionConnector, M12x1-Male, 3-pin
Output characteristicfalling on approach
Housing materialPBT
IP ratingIP67
Approval/ConformityCE, EAC, WEEE
Polarity reversal protectionYes
