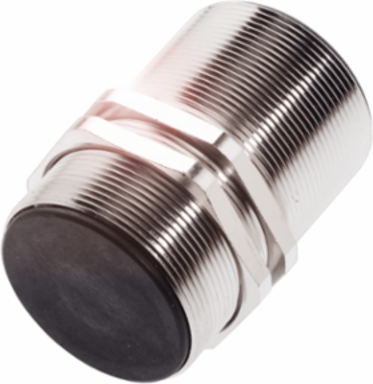

Balluff BAW MKZ-471.19-S4 Inductive Distance Sensor, Ø 47 x 70 mm, Voltage 20-30 VDC, IP67, 0-20 mm Range
Balluff BAW MKZ-471.19-S4 Inductive Distance Sensor, Ø 47 x 70 mm, Voltage 20-30 VDC, IP67, 0-20 mm Range
- MPN: BAW MKZ-471.19-S4
- PPN: BAL-BAW003M
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$855.75/ EA
Description
Experience precision sensing with the Balluff inductive distance sensor, designed for reliable performance in demanding environments. With a compact Ø 47 x 70 mm size and a robust brass housing, this sensor operates effectively within a voltage range of 20-30 VDC and is rated IP67 for superior protection against dust and water ingress. Its analog output delivers a voltage range of 0-10 V, making it suitable for various applications, while the flush mounting installation ensures seamless integration into your setup. With an operating temperature range of -10 to 70 °C and a repeat accuracy of ±5 µm, this sensor guarantees consistent and accurate measurements, essential for any industrial application.
Specifications
- Operating Voltage
- 20-30 VDC
- Repeat Accuracy
- ±5 µm
- Analog Output Voltage
- 0-10 V
- Size
- Ø 47 x 70 mm
- Housing Material
- Brass, nickel plated
- Style
- PG36
- Material Sensing Surface
- PBT
- Approval/Conformity
- CE, EAC, WEEE
Measurement Range0-20 mm
Non-linearity Max±600 µm
ConnectionConnector, M12x1 Male, 3-pin, A-coded
Operating Temperature-10 to 70 °C
IP RatingIP67
InstallationFlush mounting
Output CharacteristicFalling on approach
