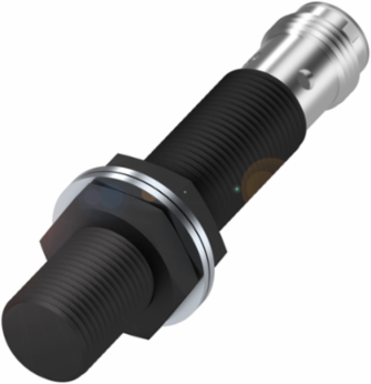

Balluff BES M12EI-PSC40A-S04G-S02 Inductive Factor 1 sensors BES M12EI-PSC40A-S04G-S02
- MPN: BES M12EI-PSC40A-S04G-S02
- PPN: BAL-BES0567
CAD
$117.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The inductive Factor 1 sensors from Balluff detect metals with high precision and are especially desirable where targets of different metals are used. They offer generous switching distances with no reduction factor and are magnetic field immune, so that they are ideal for areas with strong electromagnetic fields - such as in welding environments. For these harsh environments versions are also available with a coating that makes them extremely resistant to weld splatter.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 65 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel
- Material sensing surface
- Stainless steel, coated
- Operating voltage Ub
- 10-30 VDC
- Magnetic field immune
- magnetic field immune (AC/DC)
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM12x1
Range4 mm
Switching frequency80 Hz
Surface protectionweld spatter resistant, coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-70 °C
IP ratingIP67
Additional featuresFactor 1, Weld immune, Housing resistant to weld spatter
