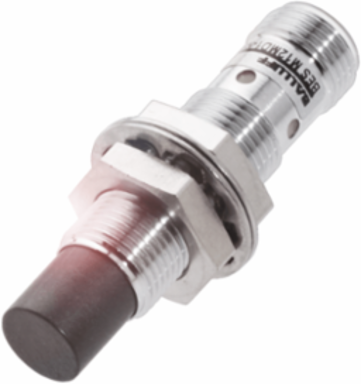

Balluff BES M12MD1-NSC80E-S04G Inductive Factor 1 sensors BES M12MD1-NSC80E-S04G
- MPN: BES M12MD1-NSC80E-S04G
- PPN: BAL-BES02YU
CAD
$195.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The inductive Factor 1 sensors from Balluff detect metals with high precision and are especially desirable where targets of different metals are used. They offer generous switching distances with no reduction factor and are magnetic field immune, so that they are ideal for areas with strong electromagnetic fields - such as in welding environments. For these harsh environments versions are also available with a coating that makes them extremely resistant to weld splatter.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- Ø 12 x 50 mm
- Installation
- non-flush
- Switching output
- NPN Normally open (NO)
- Housing material
- Brass
- Material sensing surface
- PA 12
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
- Additional features
- Factor 1, Weld immune
StyleM12x1
Range8 mm
Switching frequency2000 Hz
Surface protectionChrome-plated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-70 °C
Approval/ConformityCE, EAC, WEEE
