Balluff

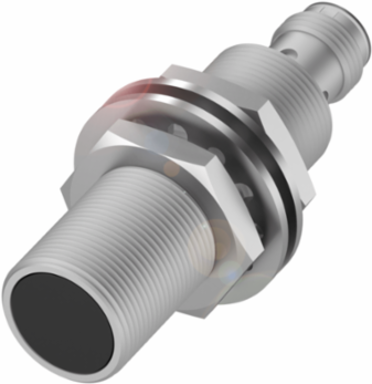

Balluff BES M18MI-PSC80A-S04G-W10 Inductive Factor 1 sensors BES M18MI-PSC80A-S04G-W10

Inductive Factor 1 sensors BES M18MI-PSC80A-S04G-W10
  • MPN: BES M18MI-PSC80A-S04G-W10
  • PPN: BAL-BES05PP

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$232.26/ EA

Description

The inductive Factor 1 sensors from Balluff detect metals with high precision and are especially desirable where targets of different metals are used. They offer generous switching distances with no reduction factor and are magnetic field immune, so that they are ideal for areas with strong electromagnetic fields - such as in welding environments. For these harsh environments versions are also available with a coating that makes them extremely resistant to weld splatter.

Specifications

Specifications

Dimension
Ø 18 x 66 mm
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Housing material
Brass
Material sensing surface
PBT
Operating voltage Ub
10-30 VDC
Magnetic field immune
magnetic field immune (AC/DC)
Approval/Conformity
CE, EAC, cULus, WEEE
StyleM18x1
Range8 mm
Switching frequency2000 Hz
Surface protectionPTFE coated
ConnectionConnector, M12x1-Male, 3-pin
Ambient temperature-40-85 °C
IP ratingIP67, IP68
Additional featuresFactor 1, Extended temperature range, Housing resistant to weld spatter
