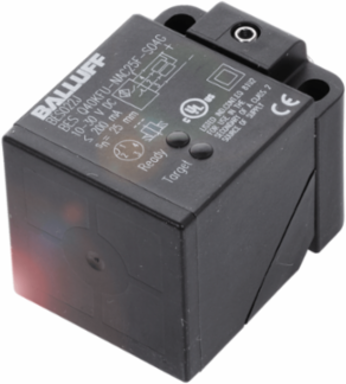

Balluff BES Q40KFU-PAC25E-S04G Inductive Factor 1 sensors BES Q40KFU-PAC25E-S04G
Balluff BES Q40KFU-PAC25E-S04G Inductive Factor 1 sensors BES Q40KFU-PAC25E-S04G
- MPN: BES Q40KFU-PAC25E-S04G
- PPN: BAL-BES021A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$203.89/ EA
Description
The inductive Factor 1 sensors from Balluff detect metals with high precision and are especially desirable where targets of different metals are used. They offer generous switching distances with no reduction factor and are magnetic field immune, so that they are ideal for areas with strong electromagnetic fields - such as in welding environments. For these harsh environments versions are also available with a coating that makes them extremely resistant to weld splatter.
Specifications
Specifications
- Dimension
- 40 x 40 x 62 mm
- Installation
- non-flush
- Switching output
- PNP NO/NC
- Housing material
- PBT
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -25-70 °C
- IP rating
- IP67
- Additional features
- Factor 1
Style40x40
Range25 mm
Switching frequency250 Hz
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
Magnetic field immunemagnetic field immune (AC/DC)
Approval/ConformitycULus, CE, EAC, WEEE
