Balluff

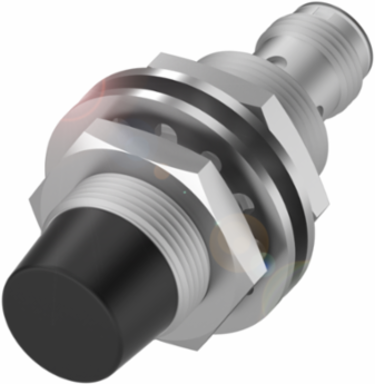

Balluff BES M18ME-PSC12E-S04G-W08 Inductive factor 1 sensors - BES05AL

Inductive factor 1 sensors - BES05AL
  • MPN: BES M18ME-PSC12E-S04G-W08
  • PPN: BAL-BES05AL

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$170.11/ EA

Specifications

Specifications

Country of Origin
Hungary
Style
M18x1
Range
12 mm
Switching frequency
2000 Hz
Material sensing surface
PBT
Operating voltage Ub
10...30 VDC
Magnetic field immune
magnetic field immune (AC/DC)
Approval/Conformity
CE; UKCA; cULus; WEEE
DimensionØ 18 x 56 mm
Installationnon-flush
Switching outputPNP Normally open (NO)
Housing materialBrass, PTFE coated
ConnectionConnector, M12x1-Male, 3-pin
Ambient temperature-40...85 °C
IP rating per IEC 60529IP67; IP68
Additional featuresFactor 1; Extended temperature range; Housing resistant to weld spatter
