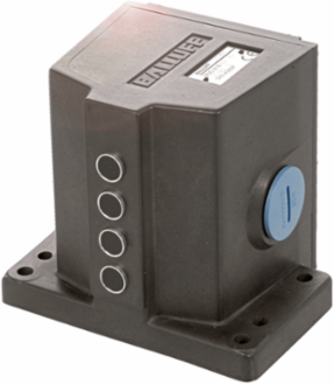

Balluff BNS 816-B02-KHG-12-602-11 Inductive Multi-Position Limit Switch, 2 mm Range, Aluminum Housing, IP67
- MPN: BNS 816-B02-KHG-12-602-11
- PPN: BAL-BNS0386
CAD
$1077.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Inductive row-position counters offer the combination of advantages of an inductive sensor with those of our mechanical housing-based line of products They are distinguished by a compact design and high switching distances. The coordinated transmission frequencies of the inductive switching elements allow for a tight sequential arrangement. The switching elements are equipped with LEDs. The switching function is thus recognizable on the housing cover.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 120 x 70 x 87 mm
- Version
- Inductive
- Range
- 2 mm
- Continuous current
- 1-2. Switch position: 0.1 A
- Installation
- Vertical
- Connection type
- 1-2. Switch position: Screw terminal
- IP rating
- IP67
Housing materialAluminum
Operating principle1-2. Switch position: Inductive
Switching frequency1-2. Switch position: 1000 Hz
Rated operating voltage Ue1-2. Switch position: 24 VDC
Switch position spacing12 mm
Ambient temperature-25-70 °C
Approval/ConformityCE, WEEE
