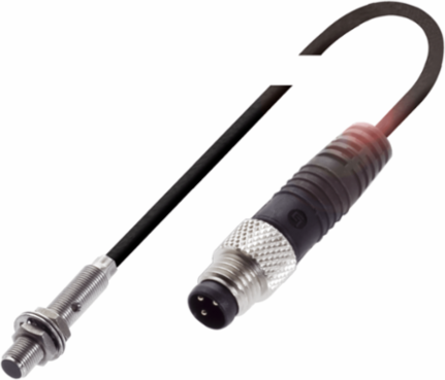

Balluff BES 516-3005-G-E4-C-S49-00,2 Inductive Sensor Ø 5 x 27 mm, PNP NO, 10-30 VDC, IP67
Balluff BES 516-3005-G-E4-C-S49-00,2 Inductive Sensor Ø 5 x 27 mm, PNP NO, 10-30 VDC, IP67
- MPN: BES 516-3005-G-E4-C-S49-00,2
- PPN: BAL-BES00HA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$199.25/ EA
Description
Engineered for precision and reliability, the inductive standard sensors from Balluff exemplify excellence in automation and control applications. With a compact design featuring a stainless steel housing and a sensing surface made of durable PBT, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -25 to 70 °C. The sensor's PNP Normally Open (NO) switching output and a remarkable switching frequency of 5000 Hz ensure responsive performance, while the IP67 rating guarantees protection against dust and water ingress, making them suitable for various industrial settings. Additionally, the sensor is designed for flush mounting, enhancing installation flexibility, and is compatible with a 10-30 VDC operating voltage, making it a versatile choice for any automation project.
Specifications
Specifications
- Dimension
- Ø 5 x 27 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Stainless steel
- Connection
- Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM5x0.5
Range1.5 mm
Switching frequency5000 Hz
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP67
