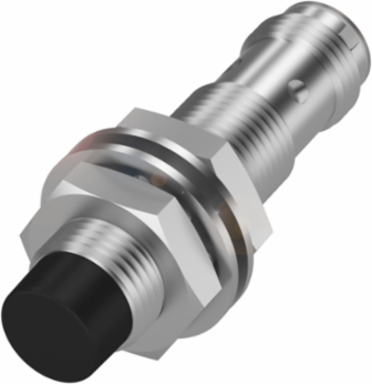

Balluff BES 516-356-E5-C-S4 Inductive Standard Sensor, Ø 12 x 50 mm, 4 mm Range, IP68, PNP Output
- MPN: BES 516-356-E5-C-S4
- PPN: BAL-BES00UY
CAD
$140.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and reliability, these inductive standard sensors from Balluff are designed to excel in a variety of automation and control applications. With an operating voltage of 10-30 VDC and a sensing range of 4 mm, they ensure accurate detection in demanding environments. The robust brass housing, coupled with an IP68 rating, provides exceptional protection against dust and water, making them suitable for harsh conditions with ambient temperatures ranging from -25 to 70 °C. Featuring a PNP normally open switching output and a quick-connect M12x1 male connector, installation is streamlined, allowing for seamless integration into your systems. Whether in industrial settings or sophisticated machinery, these sensors deliver dependable performance and durability.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- IP Rating
- IP68
- Switching Frequency
- 2500 Hz
- Assured Operating Distance
- 3.2 mm
- Min Operating Current
- 0 mA
- No-load Current Max, Undamped
- 2 mA
- Rated Insulation Voltage
- 250 V AC
- Rated Short Circuit Current
- 100 A
- Residual Current Max
- 10 µA
- Utilization Category
- DC -13
- Contamination Scale
- 3
- Vibration Resistance
- 55 Hz, 1 mm, 3x30 min
- Hysteresis Max
- 15 % of Sn
- Temperature Drift Max
- 10 % of Sn
- Size
- Ø 12 x 50 mm
- Connection
- Connector, M12x1 Male, 4-pin
- Material Sensing Surface
- PBT
- Ambient Temperature
- -25 to 70 °C
Sensing Range4 mm
Switching OutputPNP Normally open (NO)
Rated Operating Distance4 mm
Load Capacitance Max1 µF
No-load Current Max, Damped5 mA
Output Resistance33 kOhm
Rated Operating Current200 mA
Ready Delay Max21 ms
Ripple Max15 %
Voltage Drop Static Max1.5 V
Shock Resistance30 gn, 11 ms
MTTF (40 °C)640 a
Repeat Accuracy Max5 % of Sn
Tolerance Sr±10 %
InstallationNon-flush
Housing MaterialBrass
Surface ProtectionNickel-free coated
Approval/ConformityCE, cULus, EAC, WEEE
