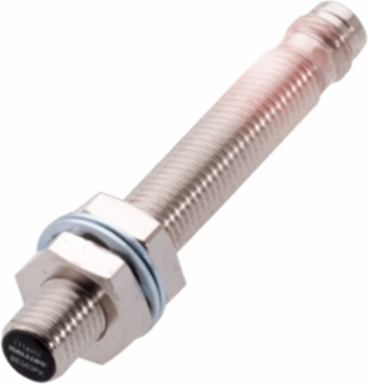

Balluff BES M08MI-PSC15B-S49G Inductive Sensor Ø 8 x 60 mm, 10-30 VDC, Brass Housing, IP68
Balluff BES M08MI-PSC15B-S49G Inductive Sensor Ø 8 x 60 mm, 10-30 VDC, Brass Housing, IP68
- MPN: BES M08MI-PSC15B-S49G
- PPN: BAL-BES003C
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$59.18/ EA
Description
Designed for precision in automation and control applications, these inductive standard sensors from Balluff exemplify reliability and efficiency. Operating within a voltage range of 10-30 VDC and capable of handling switching frequencies up to 5000 Hz, they are engineered to perform seamlessly in demanding environments, with an ambient temperature tolerance of -25 to 70 °C. The robust brass housing, complemented by a nickel-free coated surface, ensures durability, while the flush mounting style and compact dimensions of Ø 8 x 60 mm make them ideal for space-constrained installations. With an impressive IP68 rating, these sensors are well-suited for harsh conditions, providing dependable PNP normally open switching outputs within a sensing range of 1.5 mm.
Specifications
- Operating Voltage
- 10-30 VDC
- Ambient Temperature
- -25 to 70 C
- Switching Output
- PNP Normally open (NO)
- Size
- M8x1
- Connection
- M8x1 Male, 3-pin Connector
- Material Sensing Surface
- PBT
- Approval/Conformity
- CE, cULus, EAC, WEEE
Switching Frequency5000 Hz
Range1.5 mm
InstallationFlush mounting
DimensionØ 8 mm x 60 mm
Housing MaterialBrass
Surface ProtectionNickel-free coated
IP RatingIP68
