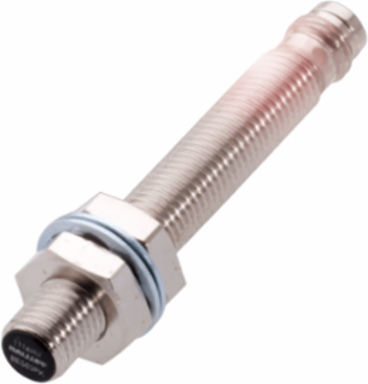

Balluff BES M08MI-PSC40B-S49G Inductive standard sensors with preferred types BES M08MI-PSC40B-S49G
Balluff BES M08MI-PSC40B-S49G Inductive standard sensors with preferred types BES M08MI-PSC40B-S49G
- MPN: BES M08MI-PSC40B-S49G
- PPN: BAL-BES01ZW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$202.66/ EA
Description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
Specifications
Specifications
- Dimension
- Ø 8 x 59 mm
- Installation
- quasi-flush
- Switching output
- PNP Normally open (NO)
- Housing material
- Brass
- Material sensing surface
- PBT
- Operating voltage Ub
- 10-30 VDC
- IP rating
- IP67
StyleM8x1
Range4 mm
Switching frequency800 Hz
Surface protectionnickel plated
ConnectionConnector, M8x1-Male, 3-pin
Ambient temperature0-60 °C
Approval/ConformityCE, cULus, EAC, WEEE
