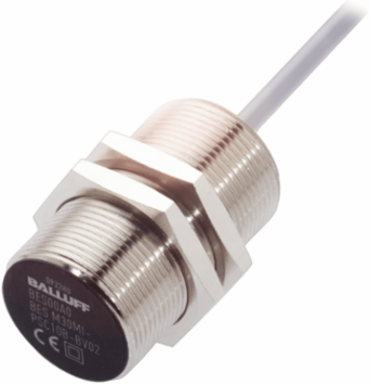

Balluff BES M30MI-PSC10B-BV03 Inductive Sensor Ø 30 x 56 mm, Brass, IP68, 10 mm Range
Balluff BES M30MI-PSC10B-BV03 Inductive Sensor Ø 30 x 56 mm, Brass, IP68, 10 mm Range
- MPN: BES M30MI-PSC10B-BV03
- PPN: BAL-BES00A1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$84.70/ EA
Description
Engineered for precision and reliability, the inductive standard sensors from Balluff are designed to meet the rigorous demands of industrial automation. With a robust brass housing and nickel plating for enhanced surface protection, these sensors are built to withstand harsh environments, featuring an impressive IP68 rating that ensures durability even in challenging conditions. Operating within a temperature range of -25 to 70 °C and equipped with a 3-meter PVC cable connection, these sensors provide versatility in installation while maintaining a compact size of Ø 30 x 56 mm. The PNP normally open switching output and a sensing range of 10 mm make them ideal for a variety of applications, ensuring efficient performance with a switching frequency of 400 Hz.
Specifications
Specifications
- Dimension
- Ø 30 x 56 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Brass
- Material sensing surface
- PA 12
- Operating voltage Ub
- 12-30 VDC
- IP rating
- IP68
StyleM30x1.5
Range10 mm
Switching frequency400 Hz
Surface protectionnickel plated
ConnectionCable, 3.00 m, PVC
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
