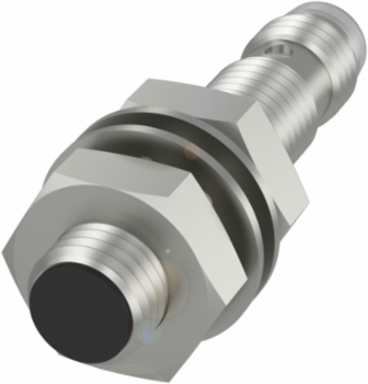

Balluff BES M08EE-POC20B-S49G-003 Inductive standard sensors with preferred types - BES00CF


Balluff BES M08EE-POC20B-S49G-003 Inductive standard sensors with preferred types - BES00CF
- MPN: BES M08EE-POC20B-S49G-003
- PPN: BAL-BES00CF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$93.02/ EA
Specifications
Specifications
- Country of Origin
- China
- Style
- M8x1
- Range
- 2 mm
- Switching frequency
- 700 Hz
- Material sensing surface
- PBT
- Operating voltage Ub
- 10...30 VDC
- IP rating
- IP67
DimensionØ 8 x 40 mm
Installationfor flush mounting
Switching outputPNP Normally closed (NC)
Housing materialStainless steel
ConnectionConnector, M8x1-Male, 3-pin
Ambient temperature-40...85 °C
Approval/ConformitycULus; CE; EAC; WEEE
