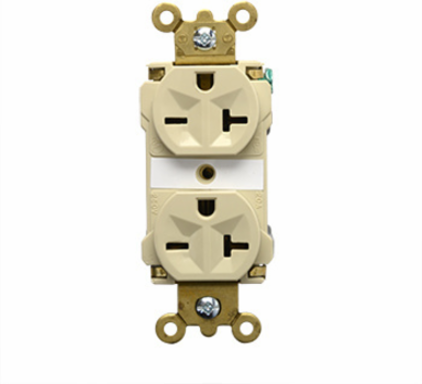

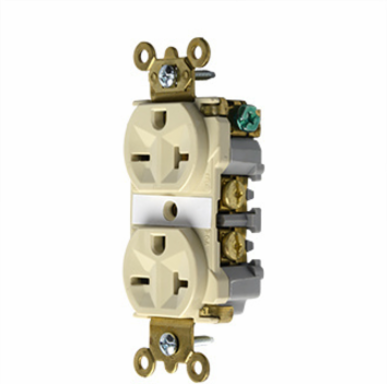

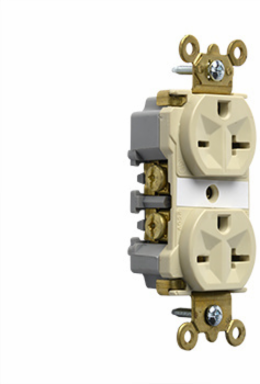

Pass & Seymour 5862AI Industrial Extra Heavy Duty Spec Grade Receptacles, Back and Side Wire, 20A, 250V, Ivory
- MPN: 5862AI
- UPC: 785007528350
- PPN: P-S-5862AI
CAD
$96.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Industrial Extra Heavy Duty Spec Grade Receptacles, Back and Side Wire, 20A, 250V, Ivory
Features
- One-piece brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and back body.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Line terminals accept #14 -- #10 AWG stranded or solid copper clad conductors.
- Auto-ground clip assures positive ground.
- Corrosion-resistant models have nickel-plated straps and contacts.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.866 in
- Color
- Ivory
- Product Line
- Pass & Seymour
- Phase
- Three
- Amperage
- 20.0 A
- Voltage
- 250.0 V
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- Features
- Brass Mounting Strap
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Special Features
- Impact, corrosion resistant, circuit label on face, auto ground clips
Height2.75 in
Width1.625 in
Country of OriginMexico
StandardWC596
StandardUL 498
StandardFEDSPEC
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorIndustrial
NEMA Configuration Code6-20R
Wire Connection TypeScrew Terminals
Operating Temperature Max60.0 °C
Operating Temperature-40°-60°C
