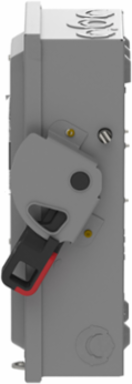

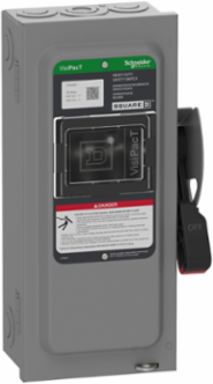

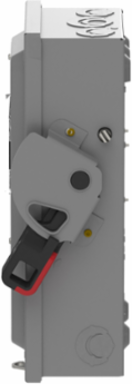

Square D VHU361 Heavy Duty Safety Switch 600V 30A 3-Pole NEMA 1 14.57 Inch Height
- MPN: VHU361
- PPN: SCH-VHU361
CAD
$240.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty safety switch from Schneider Electric is engineered for robust performance and reliability in demanding electrical environments. With a voltage rating of 600V and a current capacity of 30A, it effectively manages power distribution while ensuring safety. The 3-pole configuration provides versatility in various applications, and its NEMA 1 enclosure is designed for indoor use, protecting the mechanism from dust and moisture. Standing at 14.57 inches, this switch seamlessly integrates into your electrical system, offering both durability and ease of access for maintenance.
Features

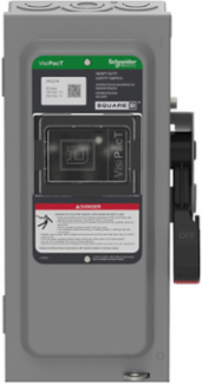

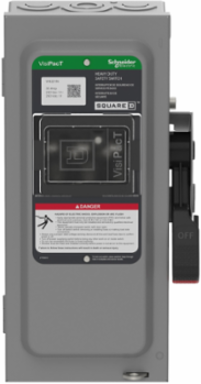

- The VisiPacT VHU361 features a built-in heavy-duty viewing window that provides instant visual confirmation of the knife-blade positions while the door remains securely closed.
- This 3-pole, 3-wire, non-fusible disconnect operates flawlessly up to 600V AC/DC at a 30A current rating. It supports variable horsepower loads ranging up to 20 hp at 480V and 30 hp at 600V for 3-phase setups, providing a flexible line-of-sight safety solution for branch circuits, conveyor lines, and industrial HVAC machinery.

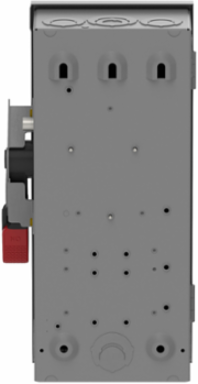

- This model comes housed in a tough NEMA 1 surface-mountable steel enclosure, designed strictly to protect interior components from dust, dirt, and light indirect splashing in indoor settings. The unit also includes a dual cover interlock mechanism that locks the door when the switch is engaged and prevents the switch from turning on while the door is open, preventing accidental contact with live lines.
- The lug terminals accommodate versatile wiring pathways, accepting AWG 14 to AWG 6 copper or AWG 12 to AWG 6 aluminum conductors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|

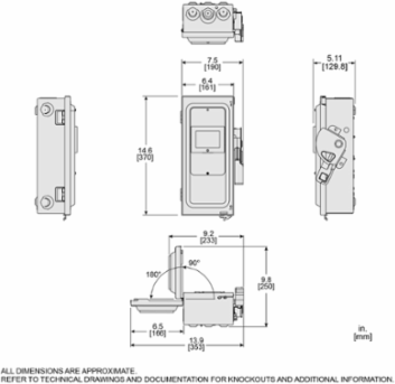

| Depth | 5.11 in |
|---|
Complementary Attributes
| Line Rated Current | 30 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 5 hp at 240 V AC 50/60 Hz for 1 phase motors10 hp at 240 V AC 50/60 Hz for 3 phase motors7.5 hp at 480 V AC 50/60 Hz for 1 phase motors, 20 hp at 480 V AC 50/60 Hz for 3 phase motors, 10 hp at 600 V AC 50/60 Hz for 1 phase motors, 30 hp at 600 V AC 50/60 Hz for 3 phase motors5 hp at 250 V DC, 15 hp at 600 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 1.1530080516702423, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.13590701769789323, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 kg CO2 eq., 3.248016280353195 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Services | field installed kit available |
| Sustainable Packaging | Yes |
| Wiring Configuration | 3-wire |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 83 |
| Width Nominal | 6.36 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Package Weight(Lbs) | 4 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 9 kg CO2 eq., 9.213820047725156 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 23 kg CO2 eq., 23.4755747592267 |
| Local Data Status | Publishable |
| Pre Comm Date | 2023-04-05 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2530 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...6 AWG aluminium14 AWG...6 AWG copper |
| Device Composition | field installed kit available |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 37 kg CO2 eq. |
| Pep Code | ENVPEP2303036EN |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 14.57 in |
| Certificate Agency | UL listed file E2875 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509045 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 37.22632615667318 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303036EN |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-10-24 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
