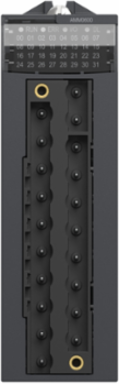

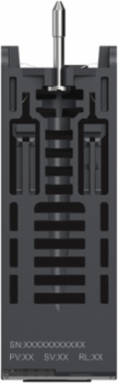

Schneider Electric BMXAMM0600 Modicon X80 Analog Non-Isolated I/O Module, 4 Inputs, 2 Outputs, 0-20mA, IP20

  • MPN: BMXAMM0600
  • PPN: SCH-BMXAMM0600
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1459.09

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This analog mixed I/O module is part of the Modicon X80 modules. It has 4 non-isolated inputs (14/12 bits) and 2 non-isolated outputs (12 bits). It offers different ranges of voltage or current for each of the inputs / outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, United States

    Complementary Attributes

    Maximum Conversion Value+/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input, +/- 11.25 V 1...5 V input, +/- 11.25 V 1...5 V input, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V input0...30 mA 0...20 mA input, 0...30 mA 4...20 mA input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input0...24 mA 0...20 mA output, 0...24 mA 4...20 mA output
    Minimum Crosstalk Attenuation70 dB

    Important Information Attributes

    Persona Type IdsEU, OM8, SI
    Conversion Time<= 2 ms, <= 2 ms
    Isolation Voltage1400 V DC between channels and ground, 1400 V DC between channels and bus750 V DC between group of I/O channels
    Power Consumption In W2.6 W 24 V DC typical3.2 W 24 V DC maximum0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
    Status Led1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
    Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3052009697, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.9763878788
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Common Mode Rejection80 dB
    Electrical Connection20 ways 1 connector
    Mtbf Reliability1400000 H
    Precision Of Internal Conversion Resistor0.1 % - 15 ppm/°C
    Product Or Component Typemixed analog I/O module
    Range Of ProductModicon X80
    Shock Resistance30 gn
    Sustainable PackagingYes
    Type Of Filterfirst order digital filtering by firmware
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %3
    Package Weight(Lbs)172.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Fallback Modepredefined, configurable
    Measurement Error<= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale 0...20 mA 0...60 °C output, <= 0.6 % of full scale 0...20 mA 0...60 °C output, <= 0.6 % of full scale 0...20 mA 0...60 °C output, <= 0.6 % of full scale 0...20 mA 0...60 °C output, <= 0.6 % of full scale 4...20 mA 0...60 °C output, <= 0.6 % of full scale 4...20 mA 0...60 °C output, <= 0.6 % of full scale 4...20 mA 0...60 °C output, <= 0.6 % of full scale 4...20 mA 0...60 °C output0.25 % of full scale +/- 10 V 25 °C output0.25 % of full scale +/- 10 V 25 °C input0.25 % of full scale 0...10 V 25 °C input0.25 % of full scale 0...5 V 25 °C input0.25 % of full scale 1...5 V 25 °C input, 0.35 % of full scale 4...20 mA 25 °C, 0.25 % of full scale 0...20 mA 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale +/- 10 V 0...60 °C output, 0.35 % of full scale 0...20 mA 25 °C input
    Recalibrationfactory calibrated on outputs, internal on inputs
    Temperature Drift100 ppm/°C +/- 10 V output, 100 ppm/°C 0...20 mA output, 100 ppm/°C 4...20 mA output, 30 ppm/°C +/- 10 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 1...5 V input50 ppm/°C 0...20 mA input, 50 ppm/°C 4...20 mA input
    Carbon Footprint Of The Distribution Phase [A4]0.0224913455, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0457999515
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]152 kg CO2 eq., 151.6382402235
    Local Publishable Date2026-03-31
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Current Consumption240 mA 3.3 V DC
    Fast Read Cycle Time1 ms + 1 ms x number of channels used
    Nominal Read Cycle Time5 ms for 4 channels
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    ReturnabilityYes
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint174 kg CO2 eq.
    Vibration Resistance3 gn
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh232.578
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint173.9881203689
    Circularity ProfileENVEOLI2311046EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-60 °C
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2311046EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typemixed analog I/O module
    Range Of ProductModicon X80

    ETIM

    ETIM 8EC001420
    ETIM 9EC001420

    Output Attributes

    Analogue Output Resolution11 bits, 0...20 mA, 11 bits, 4...20 mA12 bits, +/- 10 V
    Analogue Output Number2
    Analogue Output Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V
    Output Levelhigh level

    Surge Protection And Filtering Attributes

    Type Of Filterfirst order digital filtering by firmware

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Input Attributes

    Analogue Input Resolution12 bits 0...20 mA, 12 bits 0...5 V, 12 bits 1...5 V, 12 bits 4...20 mA13 bits 0...10 V14 bits +/- 10 V
    Permitted Overload On Inputs+/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V
    Input Impedance250 Ohm
    Input Output Isolationnon isolated
    Analogue Input Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V
    Analogue Input Number4
    Input Levelhigh level
