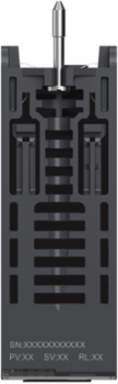

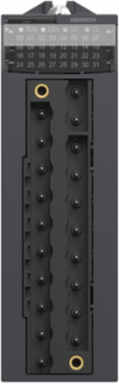

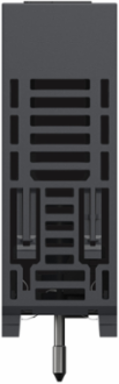

Schneider Electric BMXAMM0600H Modicon X80 Analog I/O Module, 4 Inputs, 2 Outputs, Non-Isolated, IP20
- MPN: BMXAMM0600H
- PPN: SCH-BMXAMM0600H
CAD
$1750.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This mixed analogue I/O module has 4 input channels, 2 output channels with 12bit, 13bit, 14bit resolution. It is an analogue I/O module with a power consumption of 2.8W at 24V DC. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 20-way connector for electrical connection. There is no isolation channels between channels and ground at 1400V DC, channels and bus at 1400V DC and group of I/O channels at 750V DC. It is an IP20 rated product. It weighs 0.155kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Complementary Attributes
- Maximum Conversion Value
- +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input, +/- 11.25 V 1...5 V input, +/- 11.25 V 1...5 V input, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, +/- 11.25 V +/- 10 V input0...30 mA 0...20 mA input, 0...30 mA 4...20 mA input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input0...24 mA 0...20 mA output, 0...24 mA 4...20 mA output
Minimum Crosstalk Attenuation70 dB
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Conversion Time
- <= 2 ms, <= 2 ms
- Fallback Mode
- predefined, configurable
- Measurement Error
- <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale 0...10 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 0...5 V - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.4 % of full scale 1...5 V - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.6 % of full scale 4...20 mA - 25...70 °C input, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.8 % of full scale +/- 10 V - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale 0...20 mA - 25...70 °C output, <= 0.8 % of full scale 4...20 mA - 25...70 °C output, <= 0.8 % of full scale 4...20 mA - 25...70 °C output, <= 0.8 % of full scale 4...20 mA - 25...70 °C output, <= 0.8 % of full scale 4...20 mA - 25...70 °C output, 0.25 % of full scale 0...20 mA 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, 0.25 % of full scale +/- 10 V 25 °C output0.25 % of full scale +/- 10 V 25 °C input, 0.25 % of full scale 0...10 V 25 °C input, 0.25 % of full scale 0...5 V 25 °C input, 0.25 % of full scale 1...5 V 25 °C input0.35 % of full scale 0...20 mA 25 °C input, 0.35 % of full scale 4...20 mA 25 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.4 % of full scale +/- 10 V - 25...70 °C input, <= 0.6 % of full scale 0...20 mA - 25...70 °C input, <= 0.8 % of full scale +/- 10 V - 25...70 °C output
- Recalibration
- internal on inputs, factory calibrated on outputs
- Temperature Drift
- 100 ppm/°C +/- 10 V output, 100 ppm/°C 0...20 mA output, 100 ppm/°C 4...20 mA output, 30 ppm/°C +/- 10 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 1...5 V input50 ppm/°C 0...20 mA input, 50 ppm/°C 4...20 mA input
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0230144, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0468650667, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 152 kg CO2 eq., 151.6382402235
- Local Publishable Date
- 2026-06-14
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 240 mA 3.3 V DC
- Fast Read Cycle Time
- 1 ms + 1 ms x number of channels used
- Nominal Read Cycle Time
- 5 ms for 4 channels
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
- Shock Resistance
- 30 gn
- Sustainable Packaging
- Yes
- Type Of Filter
- first order digital filtering by firmware
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Package Weight(Lbs)
- 176.000 g
- Warranty (In Months)
- 18
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 284.896
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 47558.4
- Net Use Of Fresh Water (M3) End Of Life [C1-c4]
- 12323.2
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 266.24
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 29129.6
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 263.328
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 0.7064
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2, hazardous location
Isolation Voltage1400 V DC between channels and ground, 1400 V DC between channels and bus750 V DC between group of I/O channels
Power Consumption In W2.6 W 24 V DC typical3.2 W 24 V DC maximum0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Status Led1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O
Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL, ATEX, IEC-Ex
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3122986667
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 22.4874666667
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Common Mode Rejection80 dB
Electrical Connection20 ways 1 connector
Mtbf Reliability1400000 H
Precision Of Internal Conversion Resistor0.1 % - 15 ppm/°C
Product Or Component Typemixed analog I/O module
Protective Treatmentconformal coating
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint175 kg CO2 eq.
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh232.578
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]266.24
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]92.3104
Materials For Recycling (Kg) Installation [A5]0.0064
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]60358.4
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]276.256
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]29129.6
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle0.7064
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint174.5078850235
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- mixed analog I/O module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001420
ETIM 9EC001420
Output Attributes
- Analogue Output Resolution
- 11 bits, 0...20 mA, 11 bits, 4...20 mA12 bits, +/- 10 V
- Analogue Output Number
- 2
Analogue Output Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V
Output Levelhigh level
Surge Protection And Filtering Attributes
- Type Of Filter
- first order digital filtering by firmware
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Resolution
- 12 bits 0...20 mA, 12 bits 0...5 V, 12 bits 1...5 V, 12 bits 4...20 mA13 bits 0...10 V14 bits +/- 10 V
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 30 mA 0...20 mA, +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V
- Input Impedance
- 250 Ohm
- Input Output Isolation
- non isolated
Analogue Input Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V
Analogue Input Number4
Input Levelhigh level
