Schneider Electric RSB1A120JD Harmony Electromechanical Relay, 12A, 1CO, 12V DC, IP40

  • MPN: RSB1A120JD
  • PPN: SCH-RSB1A120JD
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $9.66

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

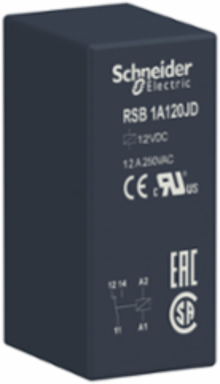

    This Harmony RSB interfacing plug-in relay has a control coil voltage of 12V DC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Austria, Poland, United States

    Complementary Attributes

    Control Circuit Type
    DC
    Maximum Switching Capacity
    3000 VA/336 W
    Minimum Switching Capacity
    120 mW 10 mA, 12 V
    Rated Current
    12 A
    Line Rated Current12 A
    Maximum Switching Voltage300 V DC IEC
    Minimum Switching Current10 mA

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Type
    without lockable test button, without lockable test button
    Electrical Durability
    100000 cycles, 12 A at 250 V, AC-1 NO, 100000 cycles, 6 A at 250 V, AC-1 NC
    Operating Rate
    <= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Shock Resistance
    10 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
    Certificate Agency
    EAC, UL, CSA
    [Uc] Control Circuit Voltage
    12 V DC, 12 V
    Carbon Footprint Of The Distribution Phase [A4]
    0.0019614723, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.0000964245
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    1 kg CO2 eq., 0.9761070749
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Average Resistance
    360 Ohm DC 20 °C +/- 10 %
    Contacts Material
    silver alloy (AgNi)
    Mechanical Durability
    30000000 cycles
    Product Availability
    Stock - Normally stocked in distribution facility
    Protection Category
    RT I
    Relay Type
    interface relay
    Safety Reliability Data
    B10d = 100000
    Series Name
    RSB series
    Software Version
    v5.9.4
    Sustainable Packaging
    No
    Test Levels
    level A group mounting
    Control Circuit Voltage 10
    12 V DC
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance.
    Energy Consumption On Product Lifetime, In Kwh
    2.12
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ithe] Conventional Enclosed Thermal Current
    12 A -40-40 °C
    [Ui] Rated Insulation Voltage
    400 V IEC 60947
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Dielectric Strength1000 V AC between contacts, 2500 V AC between poles, 5000 V AC between coil and contact
    Load Current12 A 250 V AC, 12 A 28 V DC
    Operating Time20 ms operating, 20 ms reset
    Vibration Resistance+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
    [Ie] Rated Operational Current12 A AC-1/DC-1) NO IEC, 6 A AC-1/DC-1) NC IEC
    Drop-out Voltage Threshold>= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0250506692, 0 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.1335755258
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1907
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Coil Consumption0.45 W DC
    Compatibility CodeRSB
    Contacts Type And Composition1 C/O
    Operating Positionany position
    Product Or Component Typeplug-in relay
    Range Of ProductHarmony Electromechanical Relays
    ReturnabilityYes
    Sale Per Indivisible Quantity10
    Shape Of Pinflat (PCB type)
    Status Ledwithout
    Switching Voltage12 V
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Pep CodeENVPEP2403026EN
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential, In %75
    [Ue] Rated Operational Voltage8.4...18 V DC
    [Uimp] Rated Impulse Withstand Voltage3.6 kV IEC 61000-4-5
    Package Weight(Lbs)12.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-85 °C DC), -40-85 °C DC)-40-85 °C DC), -40-85 °C DC)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    1.1367911667
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2403026EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2403026EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    plug-in relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8
    EC001437
    ETIM 9EC001437

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
    Presentation Of Legendwithout
