Schneider Electric RSB2A080ED Harmony 48V DC Plug-In Relay, 8A, 2 Changeover Contacts, IP40
- MPN: RSB2A080ED
- PPN: SCH-RSB2A080ED
CAD
$11.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

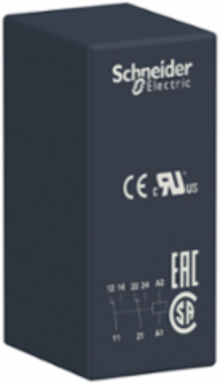

This Harmony RSB interfacing plug-in relay has a control coil voltage of 48V DC and has 2 changeover contacts double pole double throw with a rating of 8A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 48 V DC
- Product Or Component Type
- plug-in relay
- Control Type
- without push-button
- Contacts Type And Composition
- 2 C/O
- Device Short Name
- RSB
Range Of ProductHarmony Electromechanical Relays
Status Ledwithout
Series Nameinterface relay
Contact Operationstandard
[Ithe] Conventional Enclosed Thermal Current8 A -40-40 °C
Complementary
- Maximum Switching Capacity
- 2000 VA/224 W
- [Ue] Rated Operational Voltage
- 33.6...72 V DC
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgNi)
- Marking
- CE
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Average Resistance
- 5520 Ohm AC 20 °C +/- 10 %
- Switching Voltage
- 12 V
- [Ie] Rated Operational Current
- 4 A AC-1/DC-1) NC IEC || 8 A AC-1/DC-1) NO IEC
- [Ui] Rated Insulation Voltage
- 400 V IEC 60947
- Electrical Durability
- 100000 cycles, 8 A 250 V, AC-1 NO || 100000 cycles, 4 A 250 V, AC-1 NC
- Operating Position
- any position
- Load Current
- 8 A 250 V AC || 8 A 28 V DC
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
Safety Reliability DataB10d = 100000
Operating Rate<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levelslevel A group mounting
Shape Of Pinflat (PCB type)
Net Weight0.014 kg
Maximum Switching Voltage300 V DC IEC
Device Presentationcomplete product
Average Coil Consumption0.45 W DC
Sale Per Indivisible Quantity10
Minimum Switching Current10 mA
Mechanical Durability30000000 cycles
Operating Time20 ms operating || 20 ms reset
Drop-Out Voltage Threshold>= 0.1 Uc DC
Environment
- Product Certifications
- EAC || CSA || UL
- Ambient Air Temperature For Operation
- -40-85 °C DC)
- Dielectric Strength
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Ip Degree Of Protection
- IP40 IEC 60529
StandardsCSA C22.2 No 14 || IEC 61810-1 || UL 508
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
