Schneider Electric RXG12B7PV Harmony Electromechanical Relay, 10A, 1 C/O, 24V AC, Lockable Test Button
- MPN: RXG12B7PV
- PPN: SCH-RXG12B7PV
CAD
$45.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

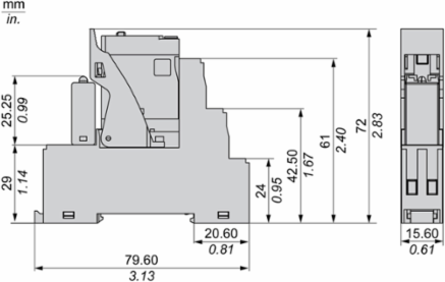

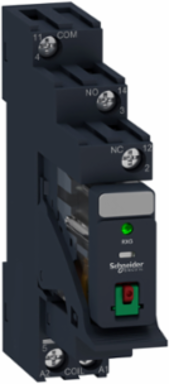

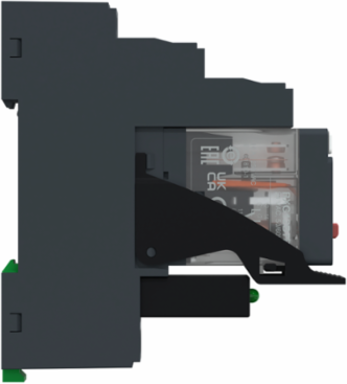

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 24Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Complementary Attributes
- Maximum Switching Capacity
- 2500 VA AC, 300 W DC
- Line Rated Current
- 10 A
- Minimum Switching Capacity
- 500 mW at 100 mA, 5 V DC
Control Circuit TypeAC
Maximum Switching Voltage250 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation, 3000 V between terminals and LTB area with basic insulation, 5000 V AC between coil and contact with reinforced insulation
- Operating Rate
- <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Maximum Switching Capacity 1
- 2500 VA AC, 300 W DC
- [Ie] Rated Operational Current
- 10 A at 250 V (AC) conforming to IEC10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC, 10 A at 250 V (AC) conforming to UL
- [Uimp] Rated Impulse Withstand Voltage
- 1200 V AC between contacts with micro disconnection, 6000 V between coil and contact with reinforced insulation, 1500 V between terminals and case with basic insulation
- Drop-out Voltage Threshold
- >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0086758725, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.4306245871
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Resistance
- 100 mOhm
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Control Type
- lockable test button
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Mechanical Durability
- 10000000 cycles
- Overvoltage Category
- III
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat (faston type)
- Status Led
- with
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 20 %
- Pep Code
- ENVPEP2208012EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Ui] Rated Insulation Voltage
- 250 V IEC
- Package Weight(Lbs)
- 59.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
Vibration Resistance3 gn +/- 1.5 mm 10-150 Hz)in operation, 5 gn +/- 1.5 mm 10-150 Hz)not in operation
Certificate AgencyEAC, CSA, UL, CE, DNV
[Uc] Control Circuit Voltage24 V AC, 24 V
Connections - Terminalsscrew connectors, connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end, connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end, connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end, connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.0076122964, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0003864191
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]8 kg CO2 eq., 7.5950538039
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2208012EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1907
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Resistance260 Ohm at 23 °C +/- 10 %
Contact Terminal Arrangementseparate
Contacts Type And Composition1 C/O
Electrical Insulation Classclass F
Load Current10 A
Operating Time20 ms
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typeinterface relay
ReturnabilityYes
Series NameRXG series
Software VersionEIME v5.7.0.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint8 kg CO2 eq.
Control Circuit Voltage 1024 V AC
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
[Ithe] Conventional Enclosed Thermal Current10 A
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 8.042352979
- Environmental Disclosure
- ENVPEP2208012EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2208012EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C, -40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2208012EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Relative Humidity10-85 %
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
