Schneider Electric RSB1A160BD Harmony Electromechanical Relay, 16A, 24V DC, 1 C/O, IP40
- MPN: RSB1A160BD
- PPN: SCH-RSB1A160BD
- UNSPSC: 39122326
CAD
$10.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

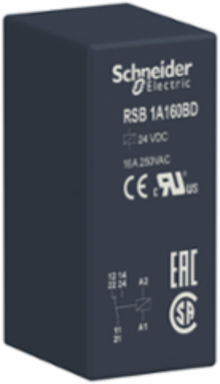

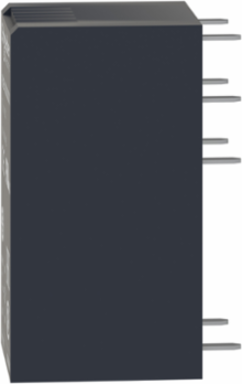

"This Harmony RSB interfacing plug-in relay has a control coil voltage of 24V DC and has 1 changeover contact single pole double throw with a rating of 16A." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "Plug in type allows easy installation and maintenance." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.014 kg
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- without
- Series Name
- interface relay
- Contact Operation
- standard
- [Ithe] Conventional Enclosed Thermal Current
- 16 A -40-40 °C
[Uc] Control Circuit Voltage24 V DC
Product Or Component Typeplug-in relay
Control Typewithout push-button
Contacts Type And Composition1 C/O
Device Short NameRSB
Complementary
- Maximum Switching Capacity
- 4000 VA/448 W
- [Ue] Rated Operational Voltage
- 16.8...36 V DC
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgNi)
- Marking
- CE
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV IEC 61000-4-5
- Average Resistance
- 1440 Ohm AC 20 °C +/- 10 %
- Switching Voltage
- 12 V
- [Ie] Rated Operational Current
- 16 A AC-1/DC-1) NO IEC || 8 A AC-1/DC-1) NC IEC
- [Ui] Rated Insulation Voltage
- 400 V IEC 60947
- Electrical Durability
- 100000 cycles, 16 A at 250 V, AC-1 NO || 100000 cycles, 8 A at 250 V, AC-1 NC
- Operating Position
- any position
- Load Current
- 16 A 250 V AC || 16 A 28 V DC
- Minimum Switching Capacity
- 120 mW 10 mA, 12 V
Safety Reliability DataB10d = 100000
Operating Rate<= 600 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levelslevel A group mounting
Shape Of Pinflat (PCB type)
Net Weight0.014 kg
Maximum Switching Voltage300 V DC IEC
Device Presentationcomplete product
Average Coil Consumption0.45 W DC
Sale Per Indivisible Quantity10
Minimum Switching Current10 mA
Mechanical Durability30000000 cycles
Operating Time20 ms operating || 20 ms reset
Drop-Out Voltage Threshold>= 0.1 Uc DC
Environment
- Product Certifications
- EAC || CSA || UL
- Ambient Air Temperature For Operation
- -40-85 °C DC)
- Dielectric Strength
- 1000 V AC between contacts || 2500 V AC between poles || 5000 V AC between coil and contact
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
StandardsUL 508 || CSA C22.2 No 14 || IEC 61810-1
Shock Resistance10 gn 11 ms) not operating IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27
Vibration Resistance+/- 1 mm 10-55 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity ProfileN/A
