Leviton

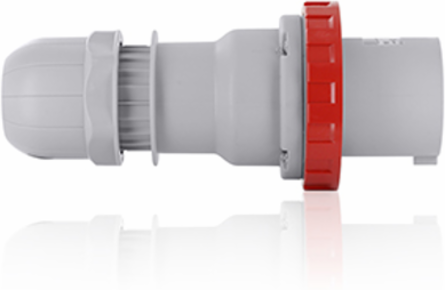

Leviton W3125-P6 International Pin & Sleeve Plug

International Pin & Sleeve Plug
International Pin & Sleeve Plug
  • MPN: W3125-P6
  • UPC: 078477676684
  • PPN: LEV-W3125-P6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$480.66/ EA

Description

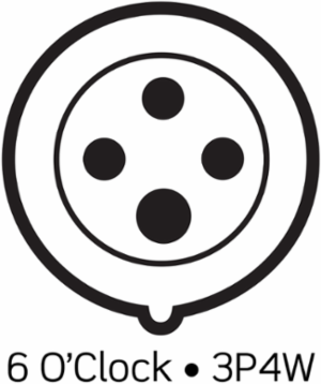

125 Amp, 380-415 Volt, 3P+E (3P, 4W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Plug, Industrial Grade, IP66/667, Watertight - RED

Specifications

Standards and Certifications

CE
Marked
NOM Certified
Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes

Material Specifications

Contacts
Nickel Plated Brass
HousingHalogen-free engineering polymer

Mechanical Specifications

Cord Grip Range (in)
1.024 - 1.90
Terminal Accom.#6 - #1 AWG

Specifications

Country of Origin
Italy
RoHS CompliantTrue

Product Features

Color
Red
Device Type
Plug
ConfigurationInternational

Environmental Specifications

IK Rating
IK08
Operating Temperature
-25°C to 40°C
IP RatingIP66/IP67

Electrical Specifications

Amperage
125 A
Pole
3
Wire
4
Frequency50/60Hz
Voltage380-415 VAC

Downloads
