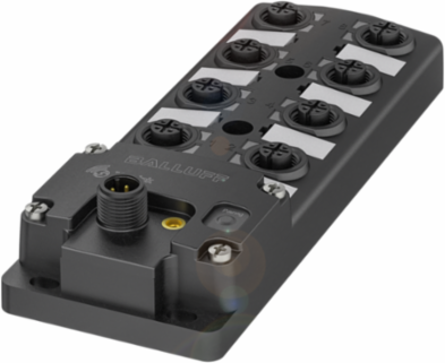

Balluff BNI IOW-302-W01-K080 IO-Link Wireless Device, 58 x 30.8 x 155 mm, 16x PNP Outputs, IP65

IO-Link Wireless Device, 58 x 30.8 x 155 mm, 16x PNP Outputs, IP65
  • MPN: BNI IOW-302-W01-K080
  • PPN: BAL-BNI00FF

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$744.18/ EA

Specifications

Specifications

Interface
IO-Link wireless 1.1
Connection (supply voltage IN)
M12x1-Male, 4-pin, A-coded
Digital outputs
16x PNP
Diagnostics
yes
Current sum UA, actuator
4 A
Housing material
PBT
Ambient temperature
-5...50 °C
Process data cycle min.
5 ms
Process data out
2 bytes
Operating voltage Ub18...30.2 VDC
Connection slots8x M12x1-Female, 5-pin, A-coded
Configurable inputs/outputsyes
Current sum US, sensor2 A
Switching current16x 350 mA
Dimension58 x 30.8 x 155 mm
IP ratingIP65, when threaded in
Process data in2 bytes
