Power quality meter, PowerLogic PM8000, Advanced, transducer, 512MB, 512s/c
Schneider Electric

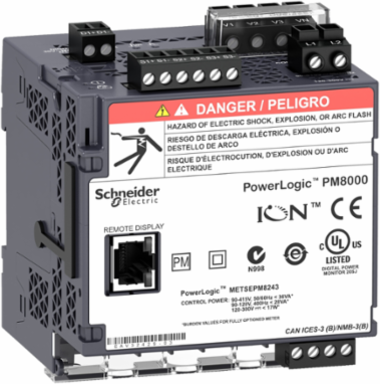

Schneider Electric METSEPM8313 Power quality meter, PowerLogic PM8000, Advanced, transducer, 512MB, 512s/c

  • MPN: METSEPM8313
  • PPN: SCH-METSEPM8313
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Power quality meter, PowerLogic PM8000, Advanced, transducer, 512MB, 512s/c

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Canada
Depth90.8 mm

Communications & Management Attributes

Communication Port Protocol
Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004
Communication Network Type
IPv6 (internet protocol)
Communication ServiceDHCP, SNMP, SMTP e-mail notification, RSTP support, NTP time synchronization, PTP time synchronization
Communication Port SupportETHERNETscrew terminal block RS485

Complementary Attributes

Line Rated Current
1 A, 10 A, 5 A

Important Information Attributes

Cybersecurity
robust security logs, Syslog protocol support, password protection, port hardening, enable/disable communication ports
Device Application
WAGES metering, power monitoring
Information Displayed
voltage, current, frequency, power, energy consumption, harmonic distortion
Market Segment
buildings large building network management: main incomerbuildings large building network management: sub feeder, buildings multi-site network management: sub feederdata center multi-site network management: sub feederhealthcare network management: sub feederindustry network management: sub feederbuildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: billing: main incomer, data center multi-site network management: main incomer, healthcare network management: main incomer, industry network management: main incomer, utility: sub feeder
Network Frequency
60 Hz, 50 Hz
Power Quality Analysis
EN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurement, IEC 61000-4-30 class A up to the 63rd harmonic, harmonic distortionIEC 62586 waveform captureIEC 61000-4-15 voltage sag and swell detection, programmablity (logic and math functions), IEC 62586 power quality monitoring, disturbance direction detection, IEC 61000-4-15 flicker, rapid voltage change
Web Services
customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server
Carbon Footprint Of The Distribution Phase [A4]
0.5737616077149312, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.45060626220352684, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
203 kg CO2 eq., 202.64310837690203
Local Data Status
Publishable
Return Indicator
Y
Device Type
Relay, Control & Measurement - measuring, monitoring device
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1406022EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2345
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Product Kit Identifier
N
Display Type
Without Display
Frequency Measurement Range
42-69 Hz
Measurement Current
50-10000 mA
Memory Capacity
512 MB
Mounting Support
DIN rail
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Or Component Type
power meter
Returnability
Yes
Software Version
v6.3.2-2
Total Lifecycle Carbon Footprint
237 kg CO2 eq.
Pep Code
ENVPEP1406022_V2
Pep Verification Date
2025-11-28
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Low voltage; 2020; Canada, CA
Energy Model - Use [B6]
Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %
12
Width Nominal
90.5 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
2.6586
Data Recordingevent logs, min/max of instantaneous values, time stamping, GPS synchronisation, alarm logs, data logs, trending/forecasting, sag and swell logs, waveform logs, sequence of event recording, harmonics logs, 64 data recorders
Electromagnetic Compatibilityelectrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11, immunity to impulse waves (2...150 Hz) conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003, conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand conforming to IEEE C37.90.1
Isolation VoltageIII400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3
Measurement Accuracycurrent +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 %
Number Of Poles3P, 1P + N, 3P + N
Type Of Measurementapparent power per phase, rmspower factor per phase, rmscurrent, voltagefrequency total, active and reactive power total, apparent power total, power factor total, active and reactive power per phase, rms
Certificate AgencyCE, cULus, N998
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.530093881154107
Carbon Footprint Of The Manufacturing Phase [A1 To A3]32 kg CO2 eq., 32.04606541588121
Other Technical Guidehttps://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310058EN_Web.pdf, PLSED310058EN
Local Publishable Date2025-12-02
Stocking FlagY
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Device Short NamePM8313
Energy Efficiency OptimizedFalse
Installation CategoryIII
Measurement Voltage57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases
Mounting Modeclip-on
Power Consumption In W18 W
Product NamePowerLogic PM8000
RangePowerLogic
Sampling Rate512 samples/cycle
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2025-04
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh411.72
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal90.5 mm
[Us] Rated Supply Voltage20...60 V DC +/- 10 %
Package Weight(Lbs)854 g
Warranty (In Months)18
Customs Code9028300000

Environment Attributes Main

Ambient Air Temperature For Storage
-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
237.2436355438558
Circularity Profile
ENVEOLI1406022EN
Eu Rohs Directive
Compliant By Exemption
Operating Altitude
9842.52 ft (3000 m)
Packaging Without Single Use Plastic
No
Relative Humidity
5-95 %
Pep Verification Date
2025-11-28
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1406022_V2
Ip Degree Of ProtectionIP30 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1406022_V2
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Type
power meter

ETIM

ETIM 8
EC002301
ETIM 9EC002301

Output Attributes

Number Of Outputs
1 pulse

Input Attributes

Analogue Input Type
voltage (impedance 5 MOhm)current (impedance 0.3 mOhm)
Number Of Inputs3 digital 30 V AC3 digital 60 V DC
