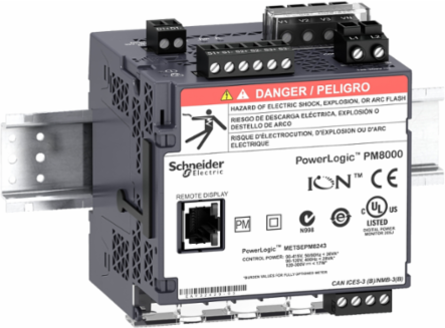

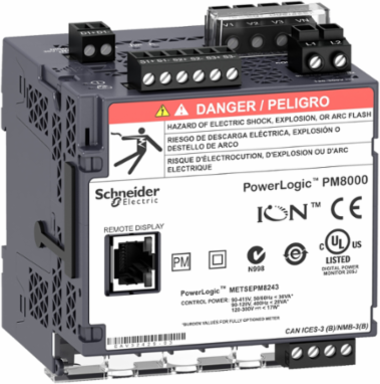

Schneider Electric METSEPM8343 Power quality meter, PowerLogic PM8000, Advanced, transducer, 512MB, 512s/c
- MPN: METSEPM8343
- PPN: SCH-METSEPM8343
- UNSPSC: 41113708
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Power quality meter, PowerLogic PM8000, Advanced, transducer, 512MB, 512s/c
Features
- Fast access to timely, critical information for energy, electrical network, and asset management
- Help operations personnel avoid downtime by making power quality understandable
- Makes energy and power quality actionable to support your op and sustainability goals
- More detailed PQ compliance reporting, and expertlevel power quality and rootcause analytics
- Forecasting to help ensure your electrical system avoid overloads, unbalances or high peak demand
- Ensure energy efficiency and optimized costs by understanding how energy is being consumed
- Perform subbilling or allocate cost to encourage energyefficient behavior, reduce PF penalities
- Support participation in demand response or variable tariff (TOU, RTP) programs
- Maximize use of capacity by performing load studies and infrastructure expansion planning
- Patented ION Programming allows for full alarm/calc customization, control and more
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada |
|---|---|
| Depth | 90.8 mm |
| Weight | 854 g |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus RTU 115 kbauds - 2-wire, ION 115 kbauds - 2-wire, DNP3, IEC 61850, Modbus TCP/IPEthernet Modbus TCP/IP daisy chain 10/100 Mbit/s, RSTP 801.1d 2004 |
|---|---|
| Communication Network Type | IPv6 (internet protocol) |
| Communication Service | SMTP e-mail notification, DHCP, RSTP support, NTP time synchronization, PTP time synchronization |
|---|---|
| Communication Port Support | ETHERNETscrew terminal block RS485 |
Complementary Attributes
| Line Rated Current | 1 A, 10 A, 5 A |
|---|
| Us Rated Supply Voltage | 90...415 V AC 45...65 Hz +/- 10 %110...415 V DC +/- 10 % |
|---|
Important Information Attributes
| Cybersecurity | password protection, port hardening, enable/disable communication ports, robust security logs, Syslog protocol support |
|---|---|
| Device Application | WAGES metering, power monitoring |
| Information Displayed | voltage, current, frequency, power, energy consumption, harmonic distortion |
| Market Segment | buildings large building network management: main incomerbuildings large building network management: sub feederbuildings multi-site network management: sub feederdata center large building network management: sub feeder, healthcare network management: sub feederindustry network management: sub feeder, buildings large building cost management: billing: sub feeder, buildings small building network management: main incomer, buildings medium building network management: main incomer, buildings multi-site network management: main incomer, data center medium building network management: main incomer, healthcare multi-site network management: main incomer, industry network management: main incomer, utility network management: sub feeder |
| Network Frequency | 50 Hz, 60 Hz |
| Power Quality Analysis | EN 50160 2010 compliance reportIEEE 519 2014 compliance report, IEC 61000-4-30 class A power quality measurementIEC 61000-4-15 up to the 63rd harmonic, harmonic distortion, waveform capture, voltage sag and swell detection, IEEE 519 2014 programmablity (logic and math functions)IEC 62586 power quality monitoring, disturbance direction detection, IEC 61000-4-15 flicker, rapid voltage change |
| Web Services | customizable home page, file upload/download via FTP, file upload/download via SFTP, web server, alarm notification by e-mail, viewing of captured waveform (FTP), viewing of captured waveform (web), HTTPS server |
| Carbon Footprint Of The Distribution Phase A4 | 0.5737616077149312, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.45060626220352684, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 203 kg CO2 eq., 202.64310837690203 |
| Local Publishable Date | 2025-12-02 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1406022EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2345 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Kit Identifier | N |
| Device Short Name | PM8343 |
| Energy Efficiency Optimized | False |
| Installation Category | III |
| Measurement Voltage | 57-400 V AC 42...69 Hz between phase and neutral100-690 V AC 42...69 Hz between phases |
| Mounting Mode | clip-on |
| Power Consumption In Va | 16 VA 230 V AC |
| Product Name | PowerLogic PM8000 |
| Range | PowerLogic |
| Sampling Rate | 512 samples/cycle |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 90.5 mm |
| Customs Code | 9028300000 |
| Functional Unit Description | The functional unit of the PowerLogic PM8000 series is a high-precision power and energy meter designed for advanced monitoring and analysis. It operates with a low power consumption of 4.7 W in active mode and supports 100% runtime, with a total energy consumption of 411.72 kWh for active components for 10 years. It features robust cybersecurity with secure protocols (HTTPS, SFTP), Syslog support, and 50 configurable user accounts. With 512 MB memory, it supports 50 data logs, waveform captures, alarms, energy trends, and custom web pages. It offers precise event timestamping to ±1 ms using PTP, NTP, IRIG-B, GPS, and network time sync. The device includes 3 digital inputs, 1 digital output, and supports up to 4 I/O modules (relays, analog/digital I/Os). It operates in harsh environments (-25 to +70°C, 5–95% humidity, up to 3000 m altitude) and mounts via DIN rail with optional remote display. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 411.72 |
| Data Recording | harmonics logs, sag and swell logs, GPS synchronisation, time stamping, data logs, trending/forecasting, waveform logs, alarm logs, sequence of event recording, min/max of instantaneous values, event logs, 64 data recorders |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3electrical fast transient/burst immunity test conforming to IEC 61000-4-4surge immunity test conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6magnetic field at power frequency conforming to IEC 61000-4-8voltage dips and interruptions immunity test conforming to IEC 61000-4-11immunity to impulse waves conforming to IEC 61000-4-12conducted and radiated emissions conforming to EN 55022, conducted and radiated emissions conforming to EN 55011, conducted and radiated emissions conforming to FCC part 15, conducted and radiated emissions conforming to ICES-003conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579surge withstand (2...150 Hz) conforming to IEEE C37.90.1 |
| Isolation Voltage | III400-690 V conforming to IEC 61010-1:ed. 3, III400-690 V conforming to EN 61010-1:ed. 3III347-600 V conforming to UL 61010-1:ed. 3, III347-600 V conforming to CSA C22.2 No 61010-1:ed. 3 |
| Measurement Accuracy | current +/- 0.1 %, voltage +/- 0.1 %active energy +/- 0.2 % |
| Number Of Poles | 1P + N, + N, 3P |
| Type Of Measurement | active and reactive power per phase, rmsapparent power per phase, rmspower factor per phase, rms, current per phase, rms, voltagefrequency total, active and reactive power total, apparent power total, power factor total |
| Certificate Agency | CE, cULus, N998 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 1.530093881154107 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 32 kg CO2 eq., 32.04606541588121 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Compatibility Code | PM8243 |
| Display Type | Without Display |
| Frequency Measurement Range | 42-69 Hz |
| Measurement Current | 50-10000 mA |
| Memory Capacity | 512 MB |
| Mounting Support | DIN rail |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | power meter |
| Returnability | Yes |
| Software Version | v6.3.2-2 |
| Total Lifecycle Carbon Footprint | 237 kg CO2 eq. |
| Database Version | 2025-04 |
| Height Nominal | 90.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 12 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 237.2436355438558 |
| Circularity Profile | ENVEOLI1406022EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % |
| Pep Verification Date | 2025-11-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -25-70 °C-25-70 °C |
| Environmental Disclosure | ENVPEP1406022_V2 |
| Ip Degree Of Protection | IP30 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1406022_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | power meter |
|---|
ETIM
| ETIM 8 | EC002301 |
|---|---|
| ETIM 10 | EC002301 |
| ETIM 9 | EC002301 |
|---|
Output Attributes
| Number Of Outputs | 1 pulse |
|---|
Input Attributes
| Analogue Input Type | voltage (impedance 5 MOhm)current (impedance 0.3 mOhm) |
|---|
| Number Of Inputs | 3 digital 30 V AC3 digital 60 V DC |
|---|
