Tripp Lite ISOTEL8ULTRA Isobar 8-Outlet Surge Protector, 3840 Joules, 12 ft. Cord, Metal Housing
- MPN: ISOTEL8ULTRA
- UPC: 037332010575
- PPN: TRP-ISOTEL8ULTRA
CAD
$200.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

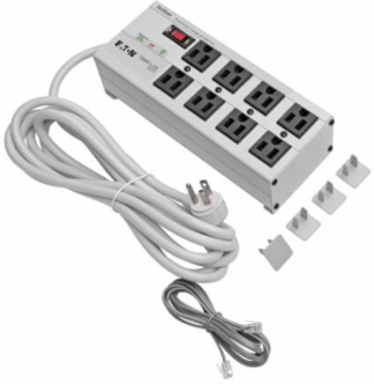

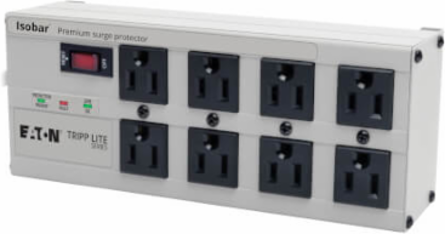

Isobar 8-Outlet Surge Protector, 3840 Joules, 12 ft. Cord, Metal Housing
Features

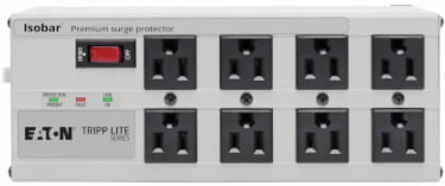

- Diagnostic LEDs: PROTECTION PRESENT (green), LINE FAULT (red), LINE OK (green)
- Combination AC circuit breaker and illuminated on/off switch
- RJ11 telephone cable included
- (4) Outlet safety covers included
Documentation & Downloads
Specifications
Additional
- Output Wattage
- 1440 W
- Frequency Compatibility
- 50 / 60 Hz
- Surge Protection Rating
- 3840 Joules
- Clamping Voltage
- 140 V RMS
- Response Time
- NM = 0 ns; CM < 1 ns
- Outlet Count
- 8 NEMA 5-15R
- Power Cord Length
- 12 ft
- Weight
- 3.4 lbs (1.54 kg)
- Isolation Filter Banks
- 4
- Automatic Shut-Off
- Yes
- Diagnostic LEDs
- Protection present (green), Line fault (red), Line OK (green)
- Communications Approvals
- FCC Part 68, Industry Canada
- Mounting Type

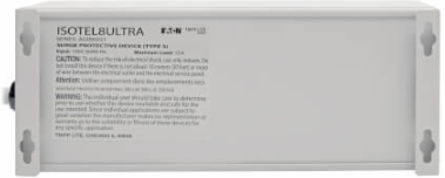

- Integrated keyhole mounting slots (210.79 mm center to center)
Nominal Input Voltage120V AC
Circuit Breaker12 A
AC Suppression Surge Current Rating92,000 amps (36,000 NM / 56,000 CM)
UL1449 Let Through Rating330 V UL Verified
Protection ModesFull normal mode (H-N), Common mode (N-G / H-G) line surge suppression

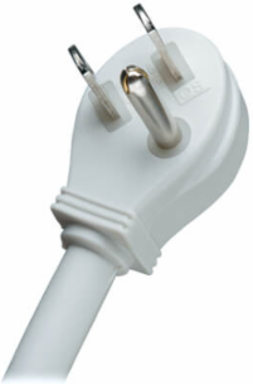

Plug TypeNEMA 5-15P right-angle
Dimensions (H x W x D)2.5 x 9 x 3.5 in (6.35 x 22.86 x 8.89 cm)
MaterialMetal
Telephone/DSL ProtectionYes, 1 line RJ11
Safe Thermal FusingPrevents unsafe conditions during extreme over-voltages
UL CertificationsUL1449 3rd Edition, UL497A
ComplianceExceeds IEEE 587 category A&B specifications
ColorLight Gray housing, Black receptacles, Light Gray cord
