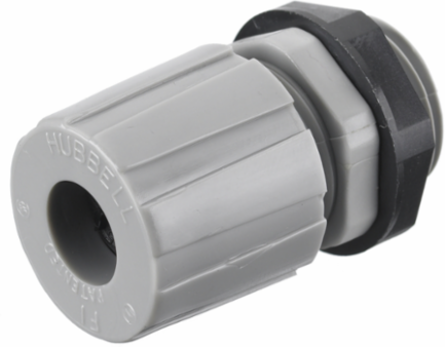

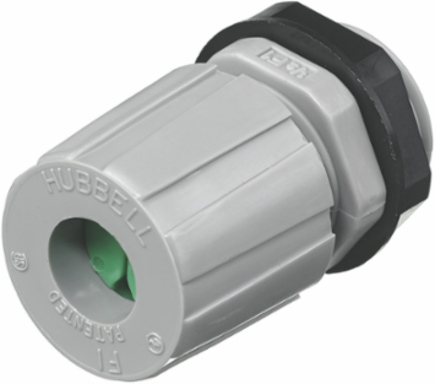

Hubbell Wiring Device-Kellems HJ1055GPK25 Junior Cord Connector, 0.06-0.13 Inch, 1/2 Inch NPT, Gray
- MPN: HJ1055GPK25
- UPC: 783585023243
- PPN: HBL-HJ1055GPK25
- UNSPSC: 39121431
CAD
$505.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, Junior, .06"-.13", 1/2" NPT, Gray
Features
- Miniature nylon cord connector
- Available in gray or black
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Hub Size
- 1/2 "
- Performance
- Environmental - Flammability - Hubbell Juniors have a UL 94V-2 rating;Environmental - Operating Temperature - -30°F to +225°F (-34°C to +107°C)
- Color
- Gray
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Connector
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- 1/2" NPT
- Number Of Conductors
- Single
- Description - Invoice
- JR CORD CONN, .06-.13"; 1/2"; GY, 25PACK
- Harmonization Code
- 3926909989
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Material
- Nylon
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 5.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Pack
- Package Quantity
- 1 EA
Width12.0000 in
Industry Standard(s)UL Listed
ApplicationStraight Male Connector
Conductor Range0.06-0.13 in (1.6-3.2 mm)
NEMA RatingIP66
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Nema RatingIP66
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A490
Cord Diameter0.06-0.13 in
SeriesMiniature
BOX SIZE5.875x12.125x12.125 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783585023243
Each - Number of Sub Packs1
Package - Total Units1 EA
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
