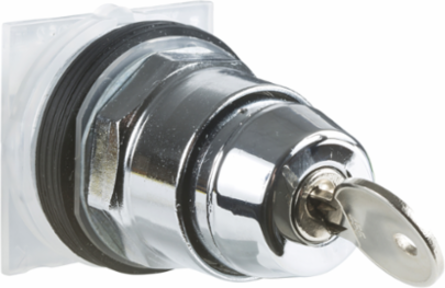

Schneider Electric 9001KS11K3R Harmony Key Selector Switch, 30mm, Metal, 2 Positions, IP66
- MPN: 9001KS11K3R
- UPC: 785901067535
- PPN: SCH-9001KS11K3R
CAD
$178.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001K, black key operated selector switch with Ronis key and E cam has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and the key can be withdrawn on left and right position. This key operated selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for key selector switch
- Device Short Name
- 9001K
Type Of Operatorstay put
Operator Profilekey switch
Complementary
- Key Number
- 455
- Mounting Diameter
- 30 mm
- Shape Of Signaling Unit Head
- octagonal
- Size
- 30 mm
- Key Withdrawal Position
- left and right
- Bezel Material
- metal
- Operator Position Information
- 2 positions
- Type Of Operator
- stay put
Cam Profile5
Operator Profilekey switch
Net Weight0.207 kg
Device Presentationbasic element
Contacts Type And Compositionwithout contact block
Product Compatibility9001KA1 side 1 or 2
Mechanical Durability500000 cycles
Type Of Keylockkey
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
