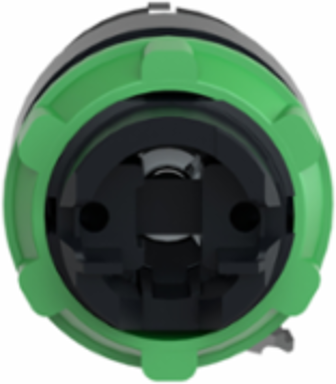

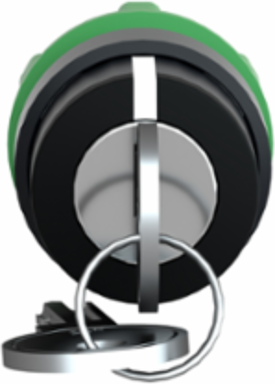

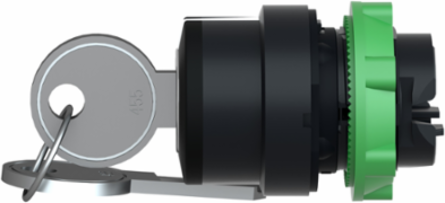

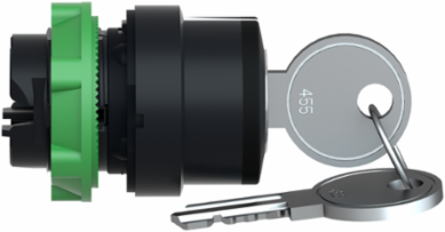

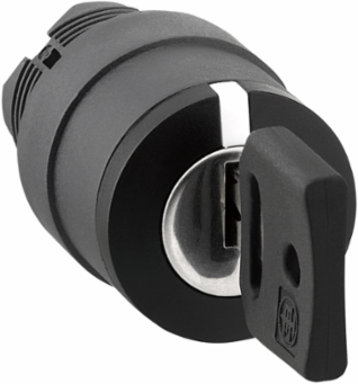

Schneider Electric ZB5AG1 Harmony XB5 Key Selector Switch Head, 22mm, 3 Positions, IP66
Schneider Electric ZB5AG1 Harmony XB5 Key Selector Switch Head, 22mm, 3 Positions, IP66
- MPN: ZB5AG1
- PPN: SCH-ZB5AG1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$123.69/ EA
Description
This Harmony XB5, head with key (key no.455) for key selector switch has 3 positions, operates with spring return from left to center mechanism with key withdrawal on left and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.
Specifications
Environment
- Product Certifications
- GL || CSA || UL listed || LROS (Lloyds register of shipping) || DNV || BV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsIEC 60947-5-4 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Overvoltage Categoryclass II IEC 60536
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Composition Code
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
- Cad Overall Height
- 29 mm
- Mechanical Durability
- 1000000 cycles
- Cad Overall Width
- 29 mm
Net Weight0.057 kg
Device Presentationbasic element
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth72 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- left to centre spring return
- Shape Of Signaling Unit Head
- round
- Key Withdrawal Position
- right
- Bezel Material
- dark grey plastic
- Operator Position Information
- 3 positions +/- 45°
- Type Of Keylock
- key 455
Mounting Diameter22 mm
Product Or Component Typehead for key selector switch
Head Typestandard
Sale Per Indivisible Quantity1
Operator Profileblack key switch
Device Short NameZB5
