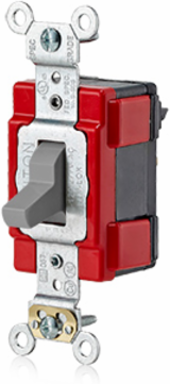

Leviton M1223-GY Lev-Lok Toggle Switch 20 Amp 3-Way Gray Extra Heavy Duty
- MPN: M1223-GY
- UPC: 078477494691
- PPN: LEV-M1223-GY
CAD
$34.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp, 120/277 Volt, 3-Way Toggle Switch, Extra Heavy Duty Specification Grade, Self Grounding, Lev-Lok Modular – GRAY Mating Lev-Lok Wiring Module Required for Use
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- NEMA
- WD-1 & WD-6
- UL Fed Spec
- WS896
- cULus
- File # E7458
NOM057
UL StandardUL 20
Material Specifications
- Base Material
- PBT
- Cover Material
- Nylon
- Ground Clips
- Brass
- Toggle
- Polycarbonate
ContactsSilver-Alloy
DomeNylon
Strap MaterialGalvanized Steel
Mechanical Specifications
- Product ID
- Markings are permanently marked on device
TerminationModular
Product Features
- Brand
- Lev-Lok
- Device Type
- Toggle Switch
- Grade
- Extra Heavy-Duty Industrial Specification Grade
ColorGray
Function3-Way
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL94
- Storage Temperature
- -40ºC to 65ºC
Operating Temperature-40°C to 65°C
Electrical Specifications
- AC Horsepower Ratings
- 1HP-120V 2HP-240V, 16A Max
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Grounding
- Self-Grounding
- Temperature Rise
- Maximum 30 degrees C rise
Amperage20 A
Endurance50,000 cycles minimum
Overload UL20 Test100 cycles of OL at 4.8 times rated current
Voltage120/277 VAC
