Leviton 4100P12WLEV 100 Amp Watertight IEC Pin & Sleeve Plug, 125/250 Volt, 3 Pole, IP66/IP67/IP68/IP69K
Leviton 4100P12WLEV 100 Amp Watertight IEC Pin & Sleeve Plug, 125/250 Volt, 3 Pole, IP66/IP67/IP68/IP69K
- MPN: 4100P12WLEV
- UPC: 078477320457
- PPN: LEV-4100P12WLEV
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$772.00/ EA
Description

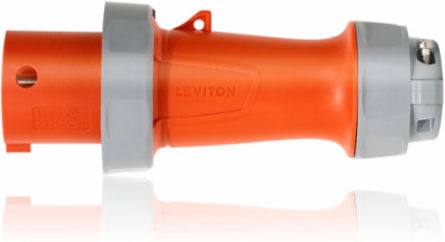

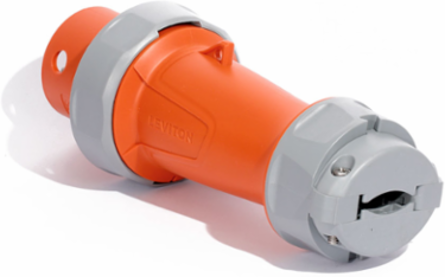

100 Amp, 125/250 Volt, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Plug, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Orange
Features
- LEV Series IEC 60309 Pin & Sleeve Devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity:

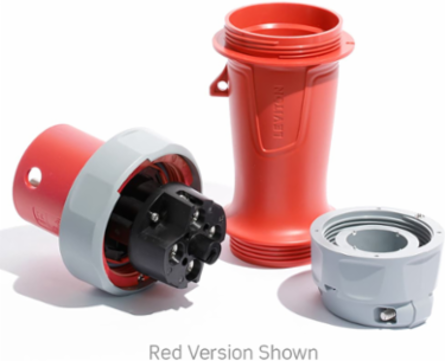

- Threaded housing design removes several screws making installation quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long-term submersion
- NSF certified sanitary design trusted for use in food & beverage facilities Leviton Pin & Sleeve devices are UL listed components and suitable for use in prefabricated wiring assemblies when wired in accordance with UL1007.
Specifications
Standards and Certifications
- CE
- CE certification
- IEC Rating
- 60309-1, 60309-2
- RoHS
- RoHS compliant components
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
NOMNOM –ANCE standards
ULUL 1686 C2, UL 1682
Material Specifications
- Assembly Screws
- 303 Stainless Steel
- Grommet/Gasket
- Buna-N
- Locking Ring
- Impact Modified Nylon
Contact CarrierGlass filled Nylon
HousingImpact Modified Nylon
Terminal Screws303 Stainless Steel
Mechanical Specifications
- Cable Clamp Screw Torque
- 15 in-lb
- Crush Test
- 250 lbs for 1 min after -25°C for 6 hrs
- Impact
- Drop from 30" 8 times after conditioning to -25°C, for 6 hoursDrop from 72" after conditioning to -35°C, for 6 hours
Conductor Range#6 AWG to #1AWG
Hardware Head TypeHex style socket screws for terminals, combination screws for all others
Screw Terminal Torque50 in-lb
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features

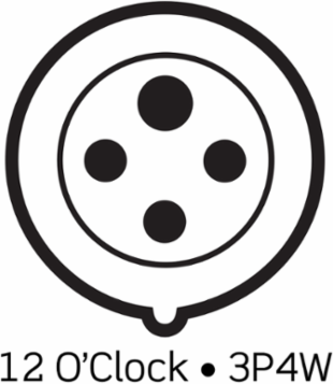

- Clock Position
- 12 o'clock
- Configuration
- North American
- Lockout/Tagout Provision
- Lockout hole on housing
- Series
- LEV Series
ColorOrange
Device TypePlug
Product MarkingsBrand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Corrosion Resistance
- Salt fog tested
- IP Rating
- IP66, IP67, IP68, IP69K
- NSF
- 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
- UV Resistance
- UV stabilized F1 rated housings
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
NEMA Enclosure Type3R, 4X, 6P and 12
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 100 A
- Dielectric Voltage
- 3000V for 1 min.
- Max. Voltage
- 600V
- Pole
- 3
- Temperature Rise
- Max 30°C rise at full rated current (after overload)
- Wire
- 4
Current InterruptingCertified for current interrupting at full-rated current and voltage
Endurance250 cycles rated V and I load, 250 cycles no-load (100A)
Overload UL20 Test50 cycles
SCCR200kA
Voltage125/250 VAC
