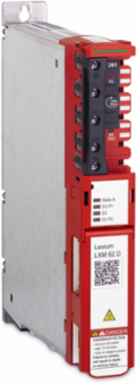

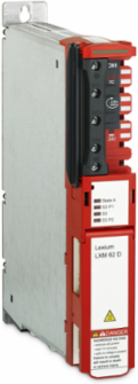

Schneider Electric LXM62DC13E21000 Lexium 62 Single Drive 130A, 24.7kW, 89.5mm Wide

  • MPN: LXM62DC13E21000
  • PPN: SCH-LXM62DC13E21000
  • UNSPSC: 39121021

Quote Required

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Experience the advanced capabilities of the Lexium 62 Single Drive, a robust solution designed for high-performance motion control applications. With a continuous power output of 24.7 kW and a compact design measuring just 89.5 mm in width, this drive is engineered to deliver exceptional efficiency and reliability. It features a range of safety functions, including safe torque off and multiple safe stop options, ensuring optimal operational safety in demanding environments. The integrated communication interface, SERCOS III, allows for seamless connectivity, making it compatible with a variety of servo motors for versatile applications. Additionally, its durable construction, rated for operation in ambient temperatures from 5 to 55 °C, ensures that it can withstand the rigors of industrial use while maintaining peak performance.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance
Depth270 mm
Weight7336 g

Communications & Management Attributes

Communication InterfaceSERCOS III, Integrated

Complementary Attributes

Us Rated Supply Voltage400 V - 10...10 %)three phase, 230 V - 10...10 %)three phase, 230 V - 10...10 %)single phase, 480 V
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Operational Altitude3000.0 m
Maximum In Rated Current50.0 A
Line Rated Current50.0 A
Maximum Current Irms130.0 A
Minimum Ambient Air Temperature For Operation5.0 °C

Important Information Attributes

Persona Type IdsEU, OM
Electrical Connectionterminal 0.2...15 mm², 24 AWG...16 AWG CN4), terminal 0.5...16 mm², 20 AWG...6 AWG CN5), terminal 0.75...16 mm², 18 AWG...6 AWG CN6), terminal 0.2...6 mm², 24 AWG...10 AWG CN7)
Safety FunctionSTO (safe torque off), SS1 (safe stop 1), SS2 (safe stop 2), SOS (safe operating stop), SMS (safe maximum speed), SLS (safe limited speed), SDI (safe direction indication)
Certificate AgencyEAC, CE, UL, TÜV, CSA
Carbon Footprint Of The End Of Life Phase C1 To C411 kg CO2 eq., 10.757407577234504
Carbon Footprint Of The Manufacturing Phase A1 To A3676 kg CO2 eq., 675.988713489236
Local Data StatusPublishable
Return IndicatorY
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Continuous Power24.7 kW
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Environmental Characteristic3K3 conforming to IEC 60721-3-3
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance100 m/s² IEC 60721-3-3
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency8 kHz
Total Lifecycle Carbon Footprint9 655 kg CO2 eq.
Database Version2024-01
Height Nominal310 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %64
Persona Type NamesEnd User, Original Equipment Manufacturer
Nominal Voltage230 V three phase, 400 V three phase
Supply Voltage208-360 V three phase, 380-480 V three phase
Carbon Footprint Of The Distribution Phase A40.9569147770615977, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.865090551711245, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B68 964 kg CO2 eq., 8964.294880273961
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1407006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Component NameLXM62
Derating Altitude Scale80.0 m
Derating Temperature Scale70.0 °C
Device Short NameLXM 62
Nominal Power24.7 kW
Phasethree phase
Product Or Component Typesingle drive
ReturnabilityYes
Software Versionv6.2.5-6
Sustainable PackagingNo
Tightening TorqueCN1 2.5-2.5 N.m
Vibration Resistance10 m/s² conforming to IEC 60721-3-3
Data Sourceextrapolated product
Width Nominal89.5 mm
Customs Code8504404000
Functional Unit DescriptionTo provide the necessary phase currents for the position control of the connected servo motors up to 425W for 10 years and a 80% use rate.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh29784

Environment Attributes Main

Product Compatibilityservo motor MH3 140 mm, 3 optimized in terms of torque and speedservo motor MH3 190 mm, 2 optimized in terms of torque and speed, servo motor MH3 190 mm, 3 optimized in terms of torque and speedservo motor SH3 140 mm, 4 optimized in terms of torque and speedservo motor SH3 205 mm, 1 optimized in terms of torque and speed, servo motor SH3 205 mm, 2 optimized in terms of torque and speed, servo motor SH3 205 mm, 3 optimized in terms of torque and speed, servo motor MH3 140 mm, 2 optimized in terms of torque and speed, servo motor MH3 190 mm, 1 optimized in terms of torque and speed, servo motor SHS
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1407006_V3
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-85 %
Pep Verification Date2026-01-20
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint9654.863006669204
Circularity ProfileENVEOLI1407006EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1407006_V3
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Phasethree phase
Range Of ProductPacDrive 3
Product Or Component Typesingle drive

ETIM

ETIM 8EC001857
ETIM 10EC001857
ETIM 9EC001857

Output Attributes

Output Current 3s Peak130 A 4 kHz, 130.0 A
Discrete Output Voltage24 V DC
Continuous Output Current50 A 4 kHz
Number Of Outputs2 digital

Input Attributes

Number Of Inputs2 digital, 2 touch probe
Discrete Input Voltage24 V DC for - 20...25 %
